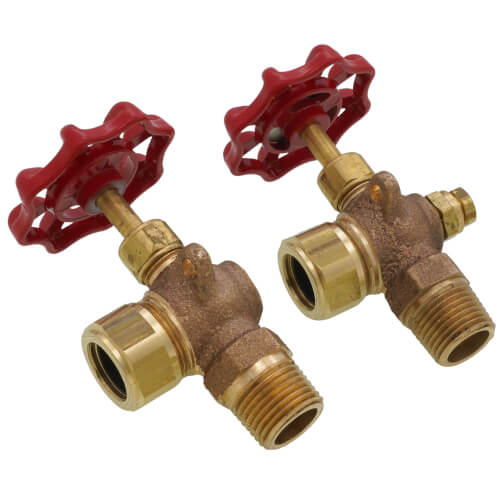

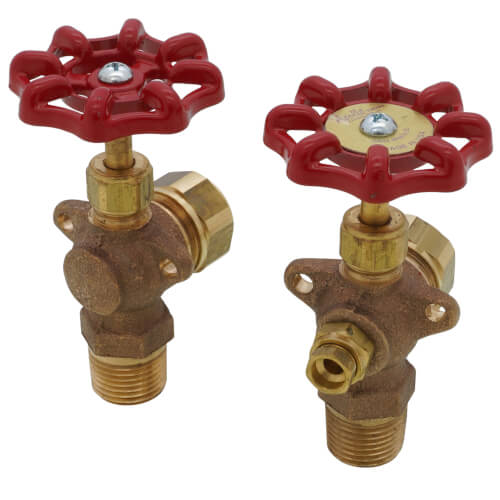

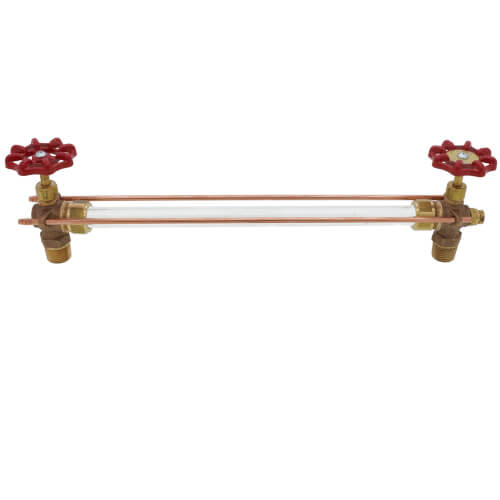

Apollo 2010400 Water Gauge, Pipe Size 1/2 In, MNPT

Product Description

Apollo Water Gauge with MPN 2010400 is designed for liquid level verification. This gauge features a pipe size of one half inch and uses MNPT connections. It is constructed from durable bronze material and includes a glass tube. The gauge is suitable for various applications including heating systems and water level monitoring.

• Pipe Size: 1/2 Inch
• Maximum Pressure: 125 psig at 350 Degrees F
• Includes Needle Drain Valve

Product Highlights

This water gauge is a reliable tool for measuring liquid levels in industrial settings. It features EPDM gasket material for durability and aluminum components for lightweight operation.

Product Information

Standard Information

• Brand: Apollo
• MPN: 2010400

Technical Specifications

• Connection Size: 1/2 in
• Gauge Size: 5/8 x 12 in
• Material: Bronze
• Pressure Rating: 125 psig at 350 deg F, 300 psig at 100 deg F
• Dimensions: 2.3 in L x 4.2 in H Open, 3.9 in H Closed
• Item Name: Water Gauge
• Material Specifications: ASTM B16, ASTM B584 C84400
• Standards/Certifications: ASME, ASSE, CRN, cCSAus certified
• Applications: For all types of liquid level verifications
