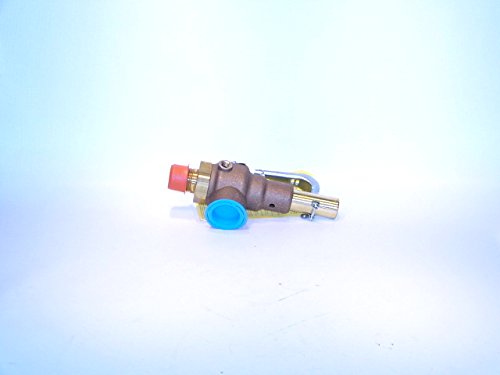

Apollo Valves 19KEDA125 19 Series Steam Safety Valve Bronze 3/4 inch MNPT x 1 inch FNPT 1404 LBS/HR 125 PSI

Product Description

The Apollo Valves model 19KEDA125 is a high-capacity safety relief valve designed for steam, air, and gas applications. Built by industry leader Apollo Valves, this model ensures reliable performance under high pressures.

• Designed for steam boilers, sterilizers, and pressure vessels.
• Features pressures from 15 to 300 psig and temperatures up to 406 degrees Fahrenheit.
• Constructed from durable bronze with optional stainless steel trim.

Product Highlights

Equipped with stainless steel springs and available in both metal and soft seat designs, this valve offers versatility and safety in industrial settings. Its full bore design facilitates high capacity utilization.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 19KEDA125

Technical Specifications

• Material: Bronze
• Inlet Type: MNPT
• Outlet Type: FNPT
• Maximum Temperature: 406°F
• Pressure Capacity: 125 psi
• Flow Capacity: 1404 lbs/hr
• Connection Size: 3/4inch MNPT x 1inch FNPT
