Apollo Valves 18C40230 3/4 Automatic Temperature and Pressure Relief Valve

Product Description

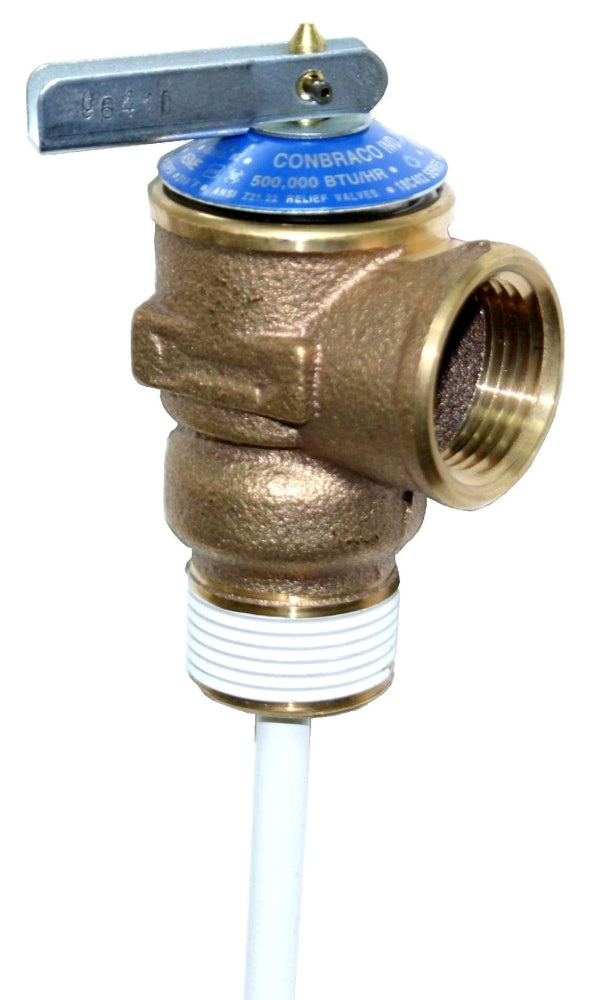

The Conbraco 18C40230 is a three-quarter inch automatic temperature and pressure relief valve. This valve features male threaded by female threaded connections. It is capable of handling a set pressure of one hundred fifty PSIG. The valve is constructed from ASTM B584 bronze, ensuring durability. It can accommodate a capacity of five hundred thousand BTU per hour.

• Automatic temperature and pressure relief functionality
• Suitable for use in water heaters and storage tanks
• Meets CSA, ANSI, and ISO standards

Product Highlights

This valve is designed for both residential and commercial applications, making it ideal for installations where overheating and overpressure must be efficiently managed.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750818110

Technical Specifications

• Inlet Size: 3/4 Inch
• Outlet Size: 3/4 Inch
• Body Material: ASTM B584 Bronze
• Spring Material: Stainless Steel
• Seat Material: Silicone
• Set Pressure Range: 150 PSIG
• Temperature Rating: 210 Deg F
• Element Length: 1-1/2 Inch
• Applicable Standards: CSA (Canada and US), ANSI Z21.22, ISO 9001
