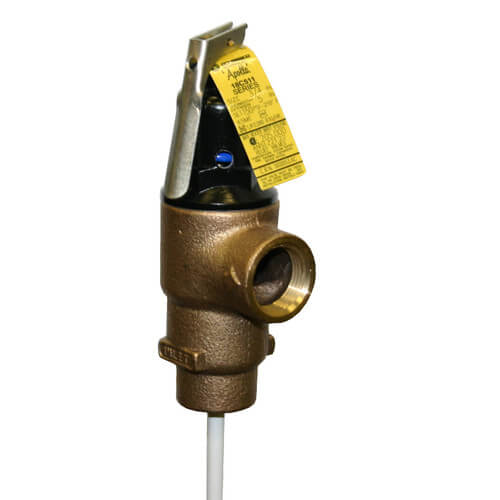

Apollo Valves 18C-511-5-125 3/4 Inch TPC 1,619,000 BTU Capacity Temperature & Pressure Relief Valve with 5 Inch Element

Product Description

The Apollo Valves model 18C-511-5-125 is a bronze automatic temperature and pressure relief valve designed for high capacity commercial hot water heaters and storage tanks. This essential safety device ensures efficient operation and prevention of pressure-related accidents.

• ASME Section IV certified, suitable for high-capacity heaters.
• Features three-quarter inch to two inch NPT connections.
• Set pressures at 125 and 150 psi with a maximum temperature of 210 degrees Fahrenheit.

Product Highlights

Constructed from ASTM B584 bronze with a silicone seat disc and Type 304 stainless steel spring, this valve is built for durability and reliability. It also includes nylon coated elements to resist corrosion.

Product Information

Standard Information

• Connection Size: 3/4 inch
• Set Pressure: 125 psi

Technical Specifications

• Body Material: Bronze
• Element Tube Coating: Nylon
• Spring Type: 304 Stainless Steel
• Max Temperature: 210 degrees Fahrenheit
• CSA & ASME Certified: Yes
