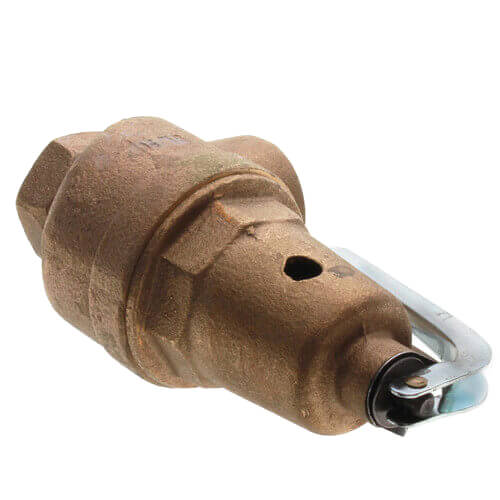

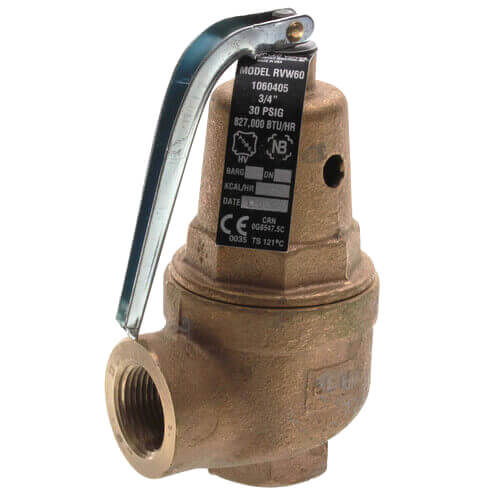

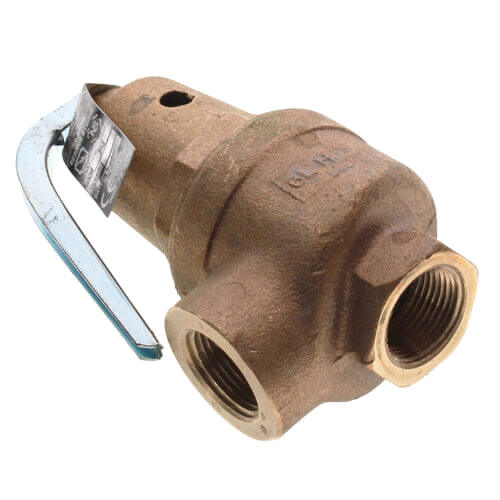

Apollo Valves 1060734 1-1/2 FNPT RVW60 11871000 BTU Capacity Bronze Relief Valve 150 psi

Product Description

The Apollo Valves 1060734 is a certified bronze safety relief valve with a capacity of 11,871,000 BTU. This valve safeguards hot water heating boilers and similar systems from excess pressure. It is adjustable and can be set to operate between 15 and 160 psi. This product is designed to operate at a maximum temperature of 250 degrees Fahrenheit.

• ASME Section IV certified.
• Corrosion resistant construction.
• Diaphragm isolated spring chamber.

Product Highlights

This relief valve is suitable for various heating applications and offers a reliable solution for pressure management.

Product Information

Standard Information

• Size: 1-1/2 inches
• Inlet Type: FNPT

Technical Specifications

• Max Temperature: 250 degrees Fahrenheit
• Connection Type: FNPT x FNPT
• Weight: 1 pound
• Shipping Depth: 6 inches
• Shipping Width: 4 inches
• Shipping Height: 3 inches
• Pressure Set Point: 150 psi
• Material: Bronze
