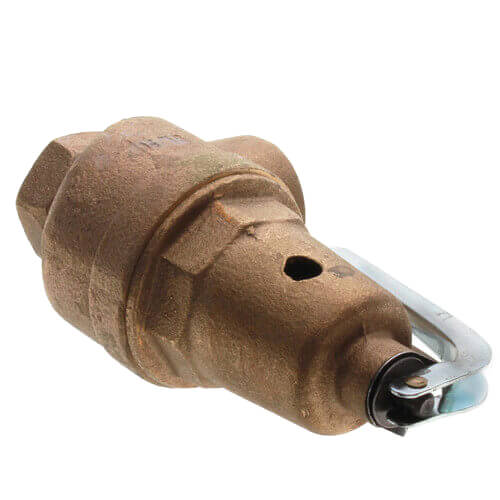

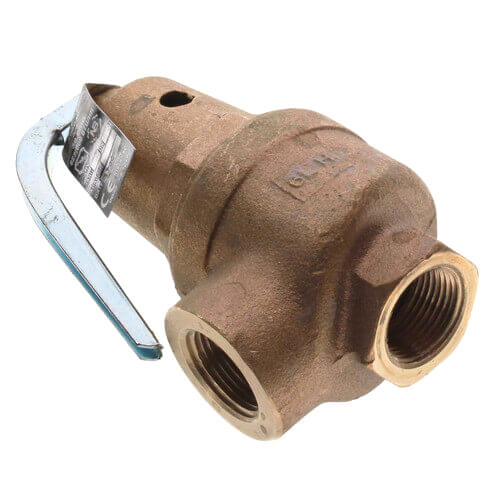

Apollo Valves 1060715 1-1/2 RVW60 Bronze Relief Valve 6421000 BTU Capacity 75 psi

Product Description

Apollo Valves 1060715 is a bronze safety relief valve designed for hot water heating systems. This valve has a capacity of six million four hundred twenty-one thousand BTUs and is certified under ASME Section IV. It is suitable for protecting boilers and similar equipment from pressure overloads. The valve is adjustable and can be set to operate between fifteen and one hundred sixty psi, making it versatile for various applications.

• ASME Section IV Certified Capacity
• Diaphragm Isolated Spring Chamber
• Corrosion Resistant Construction

Product Highlights

This valve offers an extremely high capacity and complies with Directive 97/23/EC (PED) standards, ensuring safety and reliability in hot water heating settings.

Product Information

Standard Information

• Inlet Type: FNPT
• Outlet Type: FNPT

Technical Specifications

• Size: 1-1/2 inches
• Max Temperature: 250 degrees Fahrenheit
• Pressure Set Point: 75 psi
• Capacity: 6421000 BTU
• Connection Type: FNPT x FNPT
• Weight: 1 pound
• Shipping Dimensions: 6 x 4 x 3 inches
• Made in: USA
