Apollo Valves 10-618-30 2 FNPT x 2-1/2 FNPT RVW61 6091000 BTU Hot Water Relief Valve 130 psi

Product Description

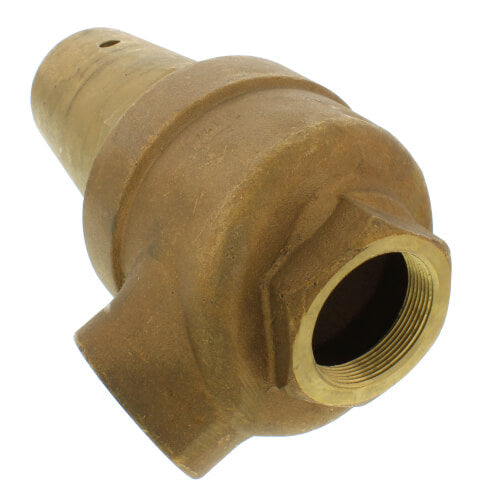

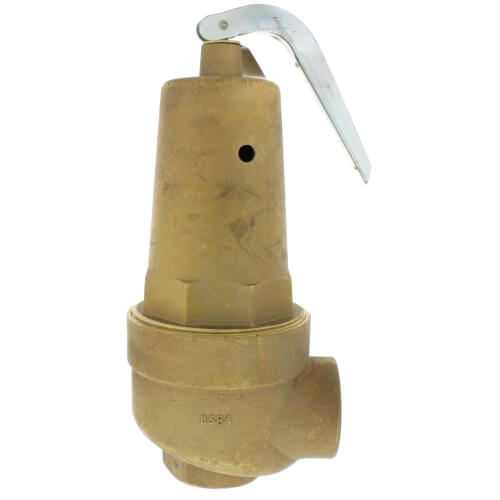

The Apollo Valves 10-618-30 is a bronze safety relief valve designed for hot water heating systems. This ASME Section IV certified valve provides effective protection for boilers and similar equipment. The valve can be adjusted to operate at any pressure between fifteen and one hundred sixty psi, making it adaptable to various applications. It is also rated for a maximum temperature of two hundred fifty degrees Fahrenheit.

• ASME Section IV certified capacity
• Corrosion resistant construction
• High capacity diaphragm isolated spring chamber

Product Highlights

This valve is compliant with Directive 97/23/EC and offers a robust solution for maintaining safe pressure levels in hot water systems. Ideal for HVAC professionals and system installers.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 10-618-30

Technical Specifications

• Size: 2 x 2-1/2 inches
• Inlet Type: FNPT
• Outlet Type: FNPT
• Max Temperature: 250 degrees Fahrenheit
• Capacity: 6091000 BTU
• Connection Type: FNPT x FNPT
• Pressure Set Point: 130 psi
