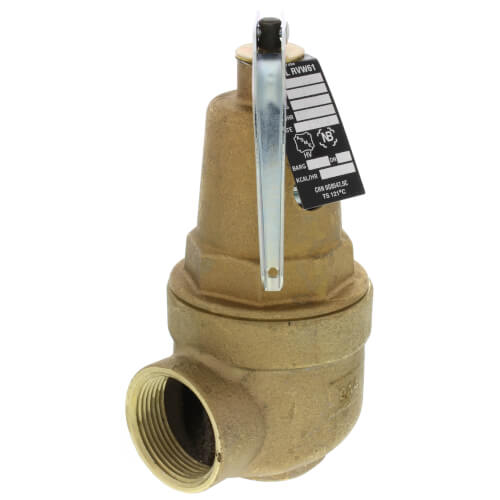

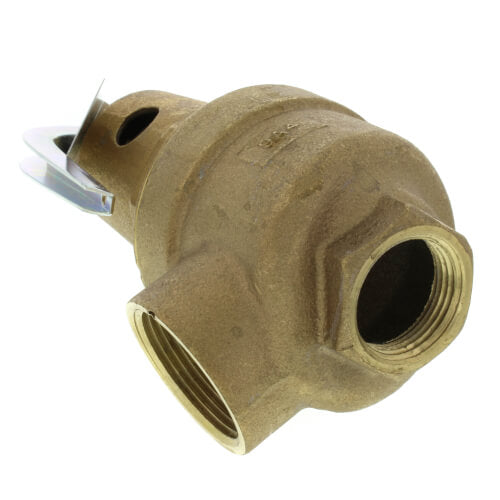

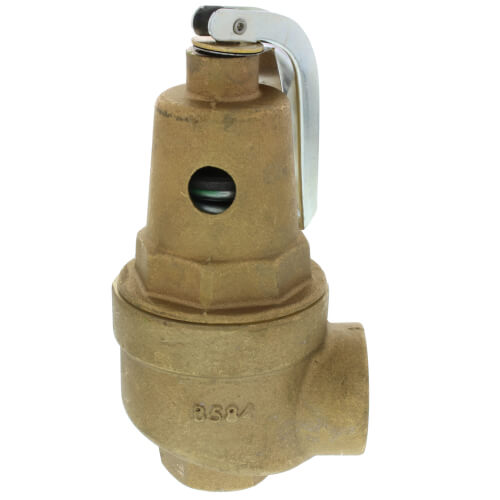

Apollo Valves 10-615-16 1 INCH FNPT x 1-1/4 INCH FNPT RVW61 3,381,000 BTU Bronze Hot Water Relief Valve (80 PSI)

Product Description

The Apollo Valves Hot Water Relief Valve, model 10-615-16, is essential for managing high BTU output in heating systems. This bronze valve features a 1 inch FNPT x 1-1/4 inch FNPT connection, ensuring robust and reliable performance.

• Ensures safe operation with a high BTU capacity of 3,381,000.
• Constructed from durable bronze with a silicone seat for longevity.
• Designed to operate at a maximum temperature of 250 degrees Fahrenheit.

Product Highlights

This relief valve is designed to provide a safe release of excessive water pressure, which might occur due to malfunctioning control systems. The elevated seat allows for effective drainage, protecting critical components.

Product Information

Standard Information

• Inlet Type: FNPT
• Outlet Type: FNPT

Technical Specifications

• Material: Bronze
• Connection Type: FNPT x FNPT
• Max Temperature: 250 degrees Fahrenheit
• Capacity: 3,381,000 BTU
• Pressure Set Point: 80 PSI
