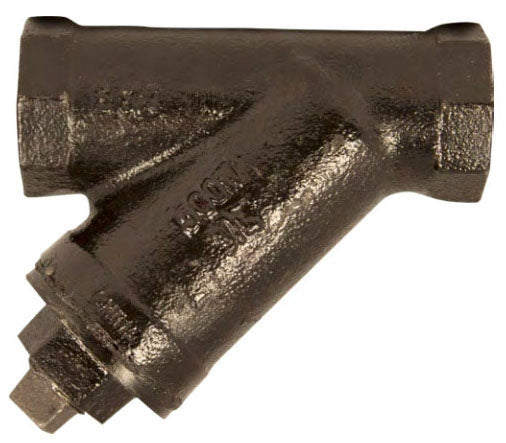

Conbraco YCT06M20 1-1/4 FPT x FPT 500 PSI CWP Wye Strainer

Product Description

The Conbraco YCT06M20 is a hydronic strainer designed to filter unwanted foreign particles from piping systems. This unit features a one and one-quarter inch female threaded connection on both ends and a pressure rating of five hundred PSI for water and two hundred fifty PSI for steam. It has a mesh size of twenty for effective filtration.

• Lead-free design
• Tapped blow-off connection with plug
• Body made from ASTM A126 Class B cast iron

Product Highlights

This strainer is essential for maintaining the integrity of your piping system while minimizing pressure loss. It is factory pressure tested to ensure reliability and features a self-aligning screen design.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750454981

Technical Specifications

• Nominal Size: 1-1/4 Inch
• End Connection: Female Threaded x Female Threaded
• Pressure Rating: 500 PSI (CWP), 250 PSI (SWP)
• Temperature Rating: 406 Deg F
• Body Material: ASTM A126 Class B Cast Iron
• Mesh Size: 20 Mesh
• Mesh Material: 304 Stainless Steel
• Seal Material: Graphite
• End to End Distance: 5 Inch
• Pipe Size to Vertical Dimension: 3.62 Inch
• Applicable Standards: FDA, ASME/ANSI B1.20.1, NSF/ANSI 372
• Inclusions: Tapped Blow-Off Connection with Plug
