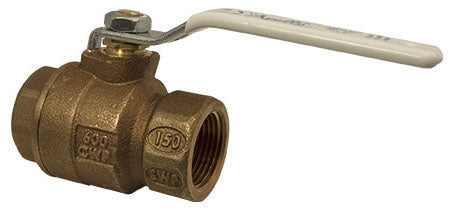

Conbraco 77CLF-107-27A 1-1/2 Inch Lead-Free Ball Valve 600 PSI CWP 150 PSI SWP

Product Description

The Conbraco 77CLF-107-27A is a 1-1/2 inch ball valve featuring NPT x NPT connections. This valve operates at a pressure of 600 PSI CWP and 150 PSI SWP. It is lead-free and constructed with a C27451 chrome plated brass ball and a C89836 dezincification resistant bronze body. The valve design includes a full port and a latch locking lever handle for secure operation.

• Lead-Free Construction
• Full Port Flow Performance
• Commercial Application Standard

Product Highlights

This ball valve supports a temperature rating of up to 450 degrees Fahrenheit. It is suitable for commercial applications and conforms to multiple standards including CUPC and NSF/ANSI 61.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750612688

Technical Specifications

• Type: 2-Piece
• Actuation Type: Latch Locking Lever Handle
• Nominal Size: 1-1/2 Inch
• End Connection: Threaded x Threaded
• Ball Material: C27451 Chrome Plated Brass
• Body Material: ASTM B584 C89836 Dezincification Resistant Bronze
• Pressure Rating: 600 PSI CWP, 150 PSI SWP
• Temperature Rating: 450 Deg F
