Apollo Valves PWR7482387 Powerpress 4733G SCH 10 to 40 Zinc Nickel Carbon Steel Gas Union, 1-1/4 In, Press

Product Description

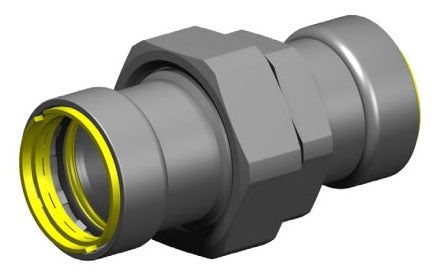

The Apollo Valves PWR7482387 Powerpress 4733G is a zinc nickel-coated carbon steel gas union. It accommodates Schedule 10 to Schedule 40 thick wall steel pipes measuring 1-1/4 inch and uses a press connection type.

• Zinc-nickel coated for corrosion resistance
• Equipped with EPDM or HNBR O-ring
• Visual Inspection Ring for easy identification

Product Highlights

The Apollo Valves PWR7482387 ensures reliability with its innovative Visual Inspection Ring (VIR) that shows when a connection has been properly pressed. The product also features increased cup depths for a better seal and straighter runs, making it suitable for fuel gas applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: PWR7482387
• Sub Brand: Powerpress
• Model: 4733G

Technical Specifications

• Connection Size: 1-1/4 in
• Connection Type: Press
• Finish: Zinc Nickel
• Material: Carbon Steel
• Length: 2.41 in
• Pressure Rating: 125 psi
• Schedule: SCH 10 to 40
• Temperature Rating: -40 to 194 deg F
• Material Specifications: ASTM A53, ASTM A106, ASTM A135, ASTM A795
• Standards/Certifications: CSA LC-4 approval, IAPMO LC-4 listed, Canadian Registration No. (CRN), UPC code, National Plumbing Code of Canada, IPC code, IFGC code, ASME B31.1, B31.3, B31.5, B31.9m ARRA compliant, Buy American Act (BAA), NFPA 13, 13D and 13R, 31, 54 and 58, CSA B149.1
