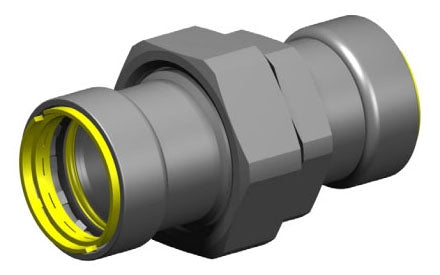

Apollo Valves PWR7482376 Powerpress 4733G SCH 10 to 40 Zinc Nickel Carbon Steel Gas Union 1 in Press

Product Description

The Apollo Valves PWR7482376 Powerpress is designed for use with Schedule 10 to Schedule 40 thick wall steel pipes. Coated with zinc-nickel to protect against corrosion, this gas union comes with either an EPDM or HNBR O-ring. The patented, color-coded visual inspection ring (VIR) ensures connections are pressed correctly and positions the pipe optimally for a cleaner press connection.

• Leak before press - unpressed fittings will visibly leak during low pressure testing
• Yellow visual inspection ring - indicates sealing element type, also optimally positions pipe for straight connection
• Increased cup depths for a better seat, tighter seal, and straighter runs

Product Highlights

This gas union is crafted for fuel gas applications. The zinc-nickel coating ensures a long-lasting tool. The inspection ring and color-coded design make for easy installation. The design reduces pipe deflection for a cleaner press connection.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: 4733G

Technical Specifications

• Connection Size: 1 in
• Connection Type: Press
• Finish: Zinc Nickel
• Item Name: Gas Union
• Length: 2.97 in
• Material Specifications: ASTM A53, ASTM A106, ASTM A135, ASTM A795
• Material: Carbon Steel
• Pressure Rating: 125 psi
• Schedule: SCH 10 to 40
• Sub Brand: Powerpress
• Temperature Rating: -40 to 194 deg F
• Applications: For fuel gas applications
• Standards/Certifications: CSA LC-4 approval, IAPMO LC-4 listed, Canadian Registration No. (CRN), UPC code, National Plumbing Code of Canada, IPC code, IFGC code, ASME B31.1, B31.3, B31.5, B31.9m ARRA compliant, Buy American Act (BAA), NFPA 13, 13D and 13R, 31, 54 and 58, CSA B149.1
