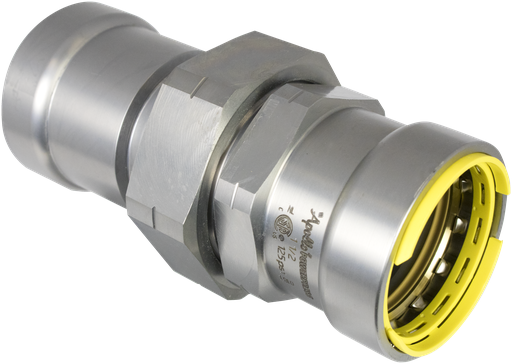

Apollo Powerpress pwr7482354 PowerPress Gas Union 1/2 inch

Product Description

The APOLLO POWERPRESS PWR7482354 PowerPress Gas Union is designed for natural gas applications and thick wall steel pipe. This union fitting ensures a clean working environment and significantly reduces installation times. It features outstanding corrosion resistance due to its ZnNi coating and clear identification of materials and dimensions.

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

The Apollo PowerPress Gas Union is ideal for natural gas and compressed air applications, ensuring a secure and efficient connection.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7482354
• Country of Origin: Netherlands

Technical Specifications

• Brand: APOLLO VALVES
• MPN: PWR7482354
• Product Type: Union
• Finish: Zinc-Nickel plated
• Collection: PowerPress Gas
• Material: Carbon Steel
• Shape: Straight
• Applications: Natural Gas, Compressed Air
• Approvals: CSA LC-4, ICC LC4, IAPMO LC-4, CRN
• Capped: Yes
• Sealing: HNBR
• Segments: Industry, Commercial Building
• Style: 3-Part
• Size: 1/2 in
• Series: 4733G
• Fitting/Connector Type: Union
• End Style: Press
• Temperature Rating: -40 to 194 deg F
• Color: Grey
• Number of connections: 2
• Material connection 1: steel
• Material quality connection 1: St 35 (1.0308)
• Material connection 2: steel
• Material quality connection 2: St 35 (1.0308)
• CT1: press
• CT2: press
• Subtype of connection 1 - CT1_sub: VSH PowerPress
• Subtype of connection 2 - CT2_sub: VSH PowerPress
• With connection coupling 1: Yes
• With connection coupling 2: Yes
• With hose connection: No
• With drain connection: No
• Grease-free: No
• Medically clean: No
• Size description: 1/2"
• D1: 0.8385826771653544
• D2: 0.8385826771653544
• Z1: 0.6499999999999999
• Z2: 0.94
• Min medium temperature: -40
• Max medium temperature: 194
• Max operating pressure gas: 125
• Pressure rating: PN 5
• Materials: steel
• Material quality: St 35 (1.0308)
• With insulation: No
• With thermometer: No
• Dn1: DN15
• Dn2: DN15
• With aerator: No
• With non return valve: No
• System-specific: Yes
• Ips manufacturing location: EMEA Hilversum
• Country of provenance: Netherlands
• Dimension unit (imp): INH Inch
• With drain: No
• Es1: 1.1023622047244095
• Es2: 1.1023622047244095
• L1: 1.74
• L2: 2.04
• Rim diameter (dr1_calculated): 1.2637795275590553
• Rim diameter (dr2_calculated): 1.2637795275590553
• Rim thickness (t2_calculated): 0.6811023622047244
• Sleeve length p1 (calculated): 1.1023622047244095
• Sleeve length p2 (calculated): 1.1023622047244095
• Category: Mega Press
• Number of Connections: 2
