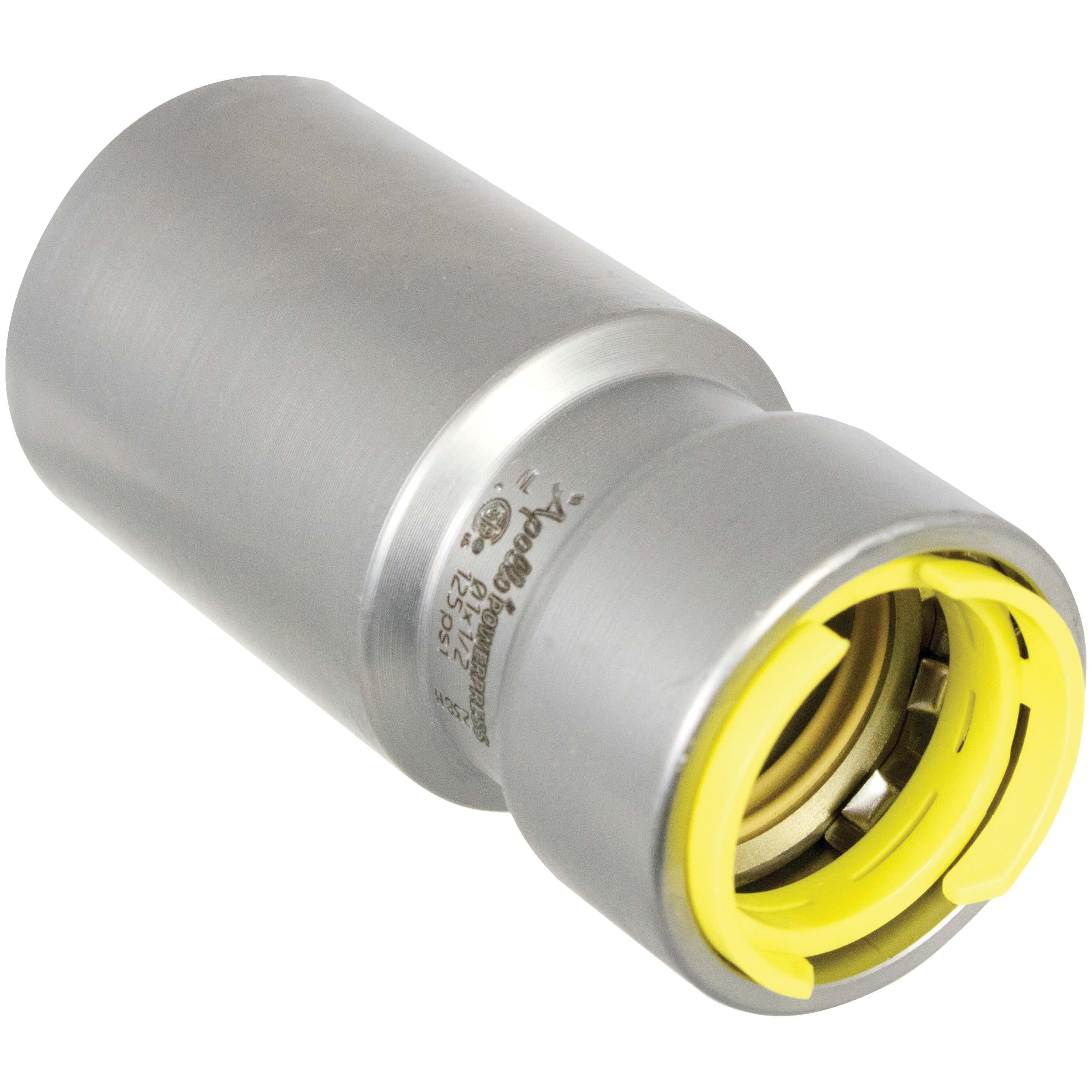

Apollo Powerpress PWR7482002 Gas reducer 1 inchesx3/4 inches

Product Description

The APOLLO POWERPRESS PWR7482002 is a reducer for natural gas applications, designed for thick wall steel pipe. This DW-profile press fitting and valve is part of the Apollo PowerPress Gas system, which reduces installation times and ensures a clean working environment. It is available in sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This gas reducer ensures secure connections and efficient installation in gas systems. Features include a visual inspection ring and compatibility with press tools.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7482002
• Country of Origin: Netherlands

Technical Specifications

• d1: 33.4
• DN1: 1"
• l1: 37
• d2: 26.7
• DN2: 3/4"
• l2: 32
• z2: 1
• manufacturer: Aalberts integrated piping systems B.V. (VSH)
• item group: PWR418G PWR418G - Apollo PowerPress Gas Fitting reducer (press x insert)
• Size: 1 inch by 3/4 inch
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• Shape: Straight
• connection type: tube end, press (DW)
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• intrastat code: 73079980
• Brand: Apollo
• series: PowerPress Gas
• product type: PWR418G
• unsps: 40173602
• etim-class: EC003024 Fitting with 2 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Model: 1-part
• Reducing: Yes
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 33.4mm
• Outer pipe diameter connection 1 (imperial): 1.31"
• Connection 1: Soldered end
• Nominal diameter connection 2: DN 20
• Outer pipe diameter connection 2: 26.7mm
• Outer pipe diameter connection 2 (imperial): 1.05"
• Wall thickness, connection 2: 2.7mm
• Wall thickness, connection 2 (imperial): 0.11"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 69mm
• Length (imperial): 2.72"
• Length of connection 1: 36.9mm
• Length of connection 1 (imperial): 1.45"
• Length of connection 2: 32.1mm
• Length of connection 2 (imperial): 1.26"
• Working length connection 2: 1.1mm
• Working length connection 2 (imperial): 0.04"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• MPN: PWR7482002
• Type: Reducer Bushing
• Country of Origin: China
• ASTM: ASTM A-106
• CSA Certified: CSA LC-4
• Clean Bagged: No
• Coating: Zinc Nickel, Galvanized
• Collection: 418G Series
• End Connection 1: Fitting
• End Connection 2: Press
• End Connections: Fitting x Press
• FM Approved: No
• Fitting Size 1: 1
• Fitting Size 2: 3/4
• Fitting Sizes: 1 in x 3/4 in
• Fitting Type: Reducer
• IAPMO Listed: Yes
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• Maximum Temperature: 194
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Global
• Pressure - Maximum: 200 psi
• UL Listed: No
• UPC: 670750902505
• Connection Size: 1 x 3/4 in
• Connection Type: Fitting x Press
• Dimensions: 2.72 in L
• Finish: Zinc Nickel-Coated
• Fitting Size: 3/4 in
• Temperature Rating: -40 to 194 deg F
