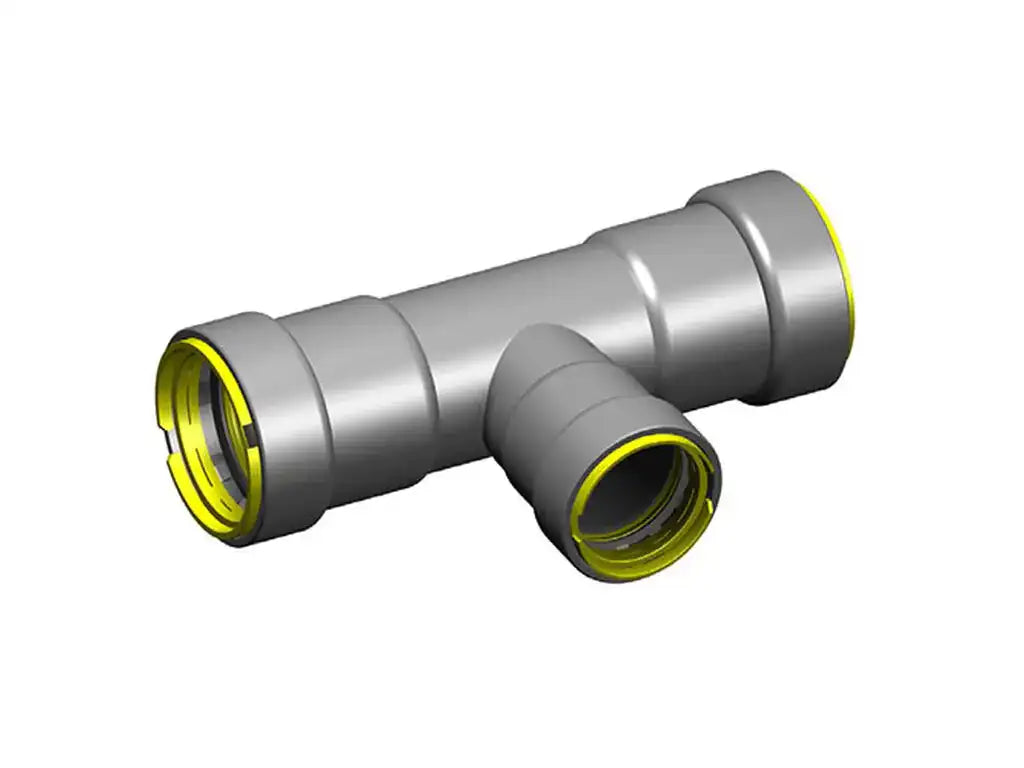

Apollo Powerpress PWR7481804 Gas Reduced T-Piece FFF 2 inchesx2 inchesx3/4 inches

Product Description

The APOLLO POWERPRESS PWR7481804 is a T-piece for natural gas applications, designed for thick wall steel pipe. Installation times are reduced significantly and a clean working environment is assured. It features a DW-profile press fitting and valves in sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This carbon steel gas press reducing tee creates secure, leak-free connections in gas line systems. It is designed to withstand high pressure, minimizing the risk of leaks.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481804
• Country of Origin: Netherlands

Technical Specifications

• article number with gtin: PWR7481804 (08711985369427)
• product number with gtin: PWR7481804 (08711985369427)
• manufacturer: Aalberts integrated piping systems B.V. (VSH)
• item group: 411RG 411RG - Apollo PowerPress Gas reducing outlet/branch Tee (3 x press)
• size: 2"x2"x3/4"
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: T-piece, reducer, 90
• connection type: press (DW), press (DW), press (DW)
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• ETIM class: EC003025 Fitting with 3 connections
• intrastat code: 73079980
• brand: Apollo
• series: PowerPress Gas
• product type: 411RG
• unsps: 40174602
• etim-class: EC003025 Fitting with 3 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Material connection 3: Steel
• Material quality connection 3: St 35 (1.0308)
• Surface protection connection 3: Zinc/nickel
• Model: PWR7481804
• Angle: 90°
• Reducing: Yes
• Multi-part: No
• System specific: Yes
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 60.3mm
• Outer pipe diameter connection 1 (imperial): 2.37"
• Wall thickness, connection 1: 3.4mm
• Wall thickness, connection 1 (imperial): 0.13"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 20
• Outer pipe diameter connection 2: 26.7mm
• Outer pipe diameter connection 2 (imperial): 1.05"
• Wall thickness, connection 2: 2.7mm
• Wall thickness, connection 2 (imperial): 0.11"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Nominal diameter connection 3: DN 50
• Outer pipe diameter connection 3: 60.3mm
• Outer pipe diameter connection 3 (imperial): 2.37"
• Wall thickness, connection 3: 3.4mm
• Wall thickness, connection 3 (imperial): 0.13"
• Connection 3: Press sleeve
• Contour code connection 3: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Length of connection 1: 96mm
• Length of connection 1 (imperial): 3.78"
• Working length connection 1: 43mm
• Working length connection 1 (imperial): 1.69"
• High tensile strength: Yes
• Length of connection 2: 76mm
• Length of connection 2 (imperial): 2.99"
• Working length connection 2: 45mm
• Working length connection 2 (imperial): 1.77"
• Length of connection 3: 96mm
• Length of connection 3 (imperial): 3.78"
• Working length connection 3: 43mm
• Working length connection 3 (imperial): 1.69"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• With thermal insulation: No
• With buffer stud: Yes
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• ASTM: ASTM A-106
• Application: Natural Gas, Compressed Air
• CSA Certified: CSA LC-4, CSA TIL-MSE-13
• Clean Bagged: No
• Coating: Zinc Nickel, Galvanized
• Collection: 411RG Series
• End Connection 1: Press
• End Connection 2: Press
• End Connection 3: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 2
• Fitting Size 2: 2
• Fitting Size 3: 3/4
• Fitting Sizes: 2 in x 2 in x 3/4 in
• Fitting Type: Reducing, Tee
• IAPMO Listed: Yes
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• Maximum Temperature: 194
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Temperature Range: -40 to 194 Deg F
• UL Listed: Yes
• UPC: 670750891465
• Category: Business & Industrial
• Type: Valves & Manifolds
• Fitting/Connector Type: Tee
• Nominal Size: 2 x 2 x 3/4 in
• End Style: POWERPRESS
• ADA Compliance: No
• Length (inches): 4.45
• Width (inches): 7.56
• Height (inches): 2.91
• Side A: 2"
• Side B: 2"
• Side C: 3/4"
• Item Type: Tees
• Manufacturer: Aalberts Integrated Piping Systems
• Product Family: Fittings
