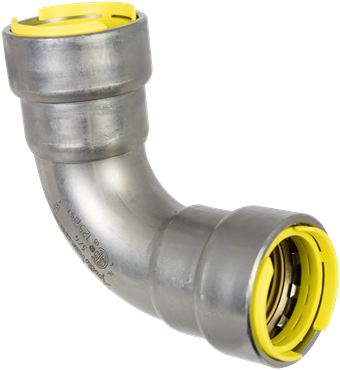

Apollo Powerpress PWR7481430 Gas Bend 90° FF 1 inches

Product Description

The APOLLO POWERPRESS PWR7481430 is a 90° bend designed for gas applications using thick wall steel pipe. The Apollo PowerPress system reduces installation times and ensures a clean working environment. It features DW-profile press fittings and valves in sizes 1/2" up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This 90 degree gas bend fitting offers simple, fast connections and a visual press indicator for easy installation.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: PWR7481430
• Country of Origin: Netherlands

Technical Specifications

• d1: 33.4
• DN1: 1"
• l1: 76
• z1: 40
• d2: 33.4
• DN2: 1"
• l2: 76
• z2: 40
• radius: 38
• angle: 90
• size: 1"
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: Bend, 90
• connection type: press (DW), press (DW)
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• intrastat code: 73079980
• brand: Apollo
• series: PowerPress Gas
• product type: 407G
• unsps: 40172802
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Bend
• Model: 1-part
• Bend angle: 90°
• Bend radius: 38mm
• Bend radius (imperial): 1.5"
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 33.4mm
• Outer pipe diameter connection 1 (imperial): 1.31"
• Wall thickness, connection 1: 2.9mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 25
• Outer pipe diameter connection 2: 33.4mm
• Outer pipe diameter connection 2 (imperial): 1.31"
• Wall thickness, connection 2: 2.9mm
• Wall thickness, connection 2 (imperial): 0.11"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 99mm
• Length (imperial): 3.9"
• Length of connection 1: 76mm
• Length of connection 1 (imperial): 2.99"
• Working length connection 1: 40mm
• Working length connection 1 (imperial): 1.57"
• Length of connection 2: 76mm
• Length of connection 2 (imperial): 2.99"
• Working length connection 2: 40mm
• Working length connection 2 (imperial): 1.57"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Fitting / Connector Type: 90 deg Elbow
• Nominal Size: 1 in
• Suitable For Use With: HNBR (Gas)
• End Style: P x P
• Material: Carbon Steel
