Apollo Powerpress PWR7481298 Gas Straight Coupling FF 1/2 inches

Product Description

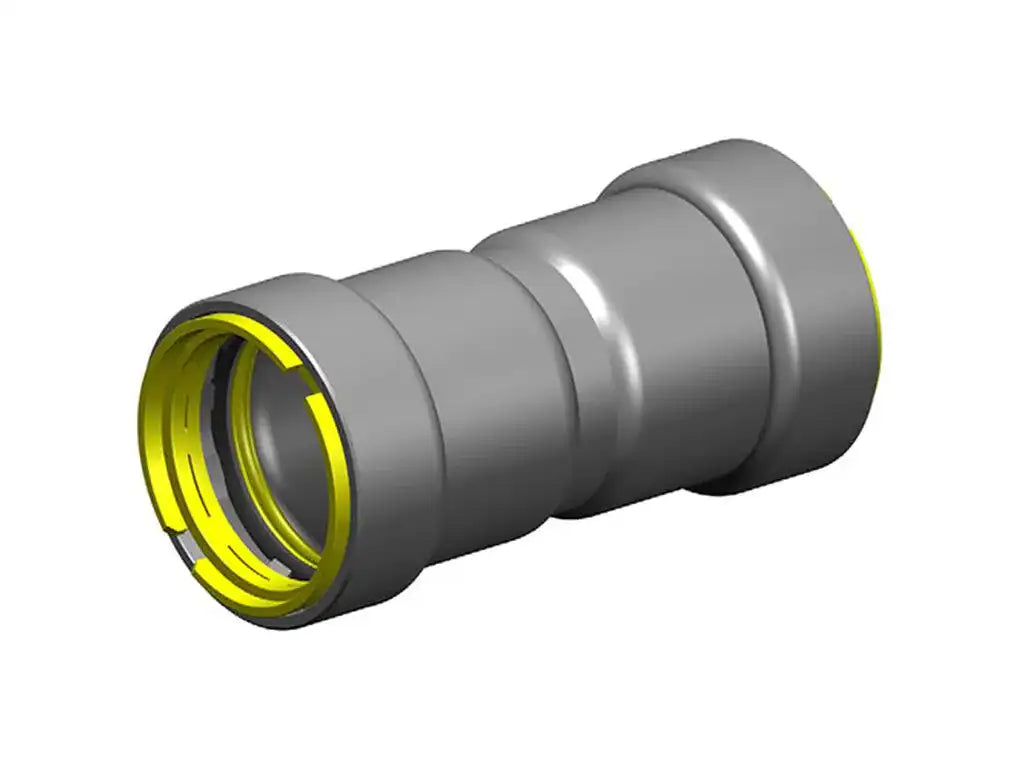

The APOLLO POWERPRESS PWR7481298 400G is a straight coupling designed for oil and gas applications using thick wall steel pipe. Installation times are reduced significantly and a clean working environment is assured. It features a Visu-Control-ring and Leak Before Pressed-function for clear identification of materials and dimensions. The system is compatible with Ridgid and Milwaukee press tools.

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This coupling provides robust connections designed for durability and reliability. Crafted using high-pressure casting techniques for superior strength and a perfect fit to reduce the risk of leaks.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481298
• Country of Origin: Netherlands

Technical Specifications

• d1: 21.3
• DN1: 1/2"
• l1: 34
• z1: 6
• d2: 21.3
• DN2: 1/2"
• l2: 34
• z2: 6
• Size: 1/2"
• Materials: steel (St 35 (1.0308))
• Finishing: zinc-nickel plated
• Shape: Straight
• Connection type: press (DW), press (DW)
• Pressure rating (PN): PN 5
• Sealing: HNBR
• Min. medium temperature: -40 °F
• Max medium temperature: 194 °F
• Product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• Intrastat code: 73079980
• Brand: Apollo PowerPress
• Series: PowerPress Gas
• Product type: 400G
• UNSPS: 40172602
• etim-class: EC003024 Fitting with 2 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Model: 1-part
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 21.3mm
• Outer pipe diameter connection 1 (imperial): 0.84"
• Wall thickness, connection 1: 2.7mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 15
• Outer pipe diameter connection 2: 21.3mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Wall thickness, connection 2: 2.7mm
• Wall thickness, connection 2 (imperial): 0.11"
• Connection 2: Press sleeve
• Length: 68mm
• Length (imperial): 2.68"
• Length of connection 1: 34.1mm
• Length of connection 1 (imperial): 1.34"
• Working length connection 1: 6.1mm
• Working length connection 1 (imperial): 0.24"
• Length of connection 2: 34.1mm
• Length of connection 2 (imperial): 1.34"
• Working length connection 2: 6.1mm
• Working length connection 2 (imperial): 0.24"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• ASME: ASME B31
• Clean Bagged: No
• Coating: Zinc Nickel
• Collection: 400G Series
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 1/2
• Fitting Size 2: 1/2
• Fitting Sizes: 1/2 in
• Fitting Type: Coupling
• IAPMO Listed: Yes
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• NSF Certified: No
• Origin: Global
• Pressure - Maximum: 200 psi
• UL Listed: No
• End Style: P x P
• Nominal Size: 1/2 in
• Suitable For Use With: HNBR (Gas)
• Manufacturer #: PWR7481298
• ADA Compliance: No
• Width (inches): 1.26
• Height (inches): 1.26
• Side A: 1/2"
• Side B: 1/2"
• Item Type: Coupling
• MPN: PWR7481298
• Product Family: Fittings
• Connection Type: Press x Press
• SKU: 508698
• Grade: Grade St 35
• Outer Pipe Dia. 1: 21/25"
• Outer Pipe Dia. 2: 21/25"
• Wall Thickness Connection 1: 2.7 mm
• Wall Thickness Connection 2: 2.7 mm
• Z1: 0.24
• Z2: 0.24
