Apollo Powerpress 7482521 Gas Stop End F 2 inches PWR7482521

Product Description

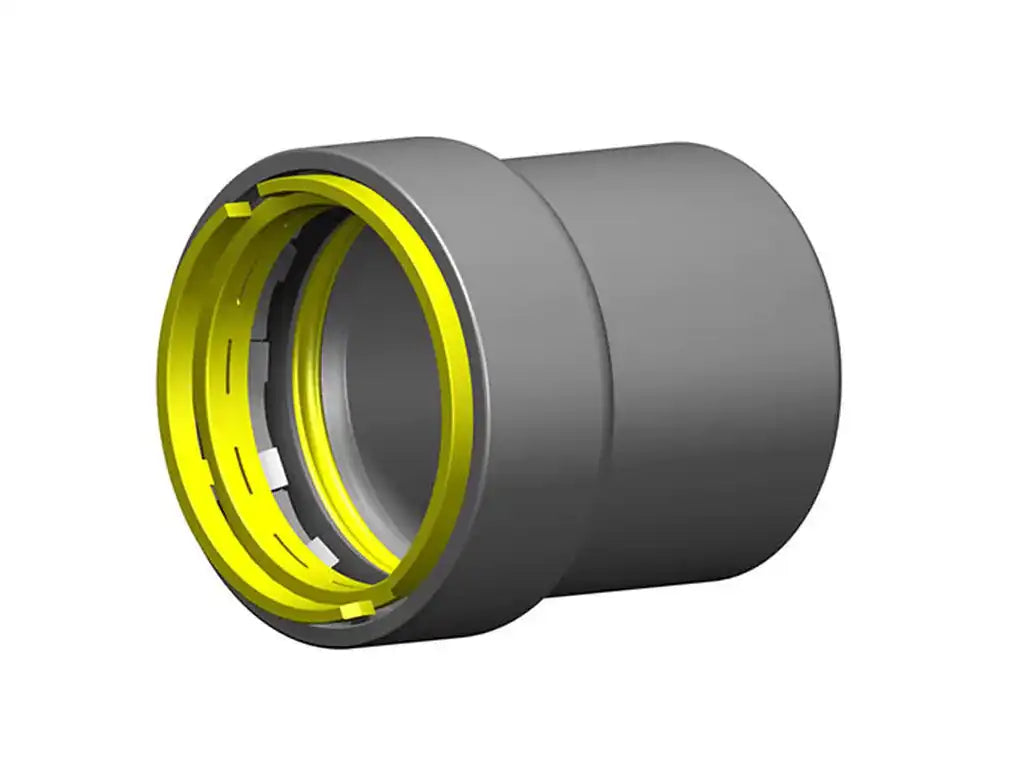

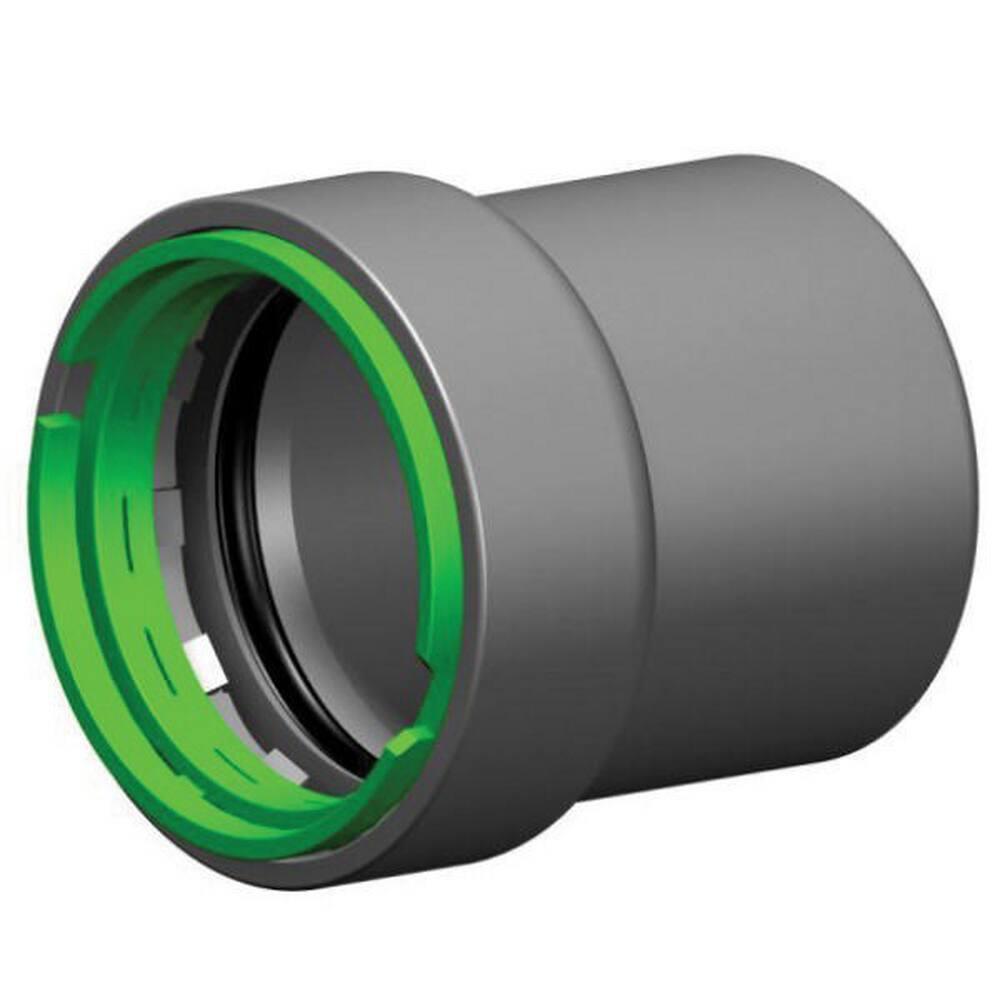

The APOLLO POWERPRESS 7482521, also known as the 417G, is an end cap designed for gas applications using thick wall steel pipe. The Apollo PowerPress system reduces installation times and ensures a clean working environment. It features a Visu-Control-ring and Leak Before Pressed-function. The fitting is designed for pipes up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This Apollo PowerPress gas end cap provides a secure and efficient solution for gas pipe systems, ensuring reliability and ease of installation.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7482521
• Country of Origin: Netherlands

Technical Specifications

• d1: 60.3
• DN1: 2"
• l1: 62
• z1: 9
• size: 2"
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: End coupling
• connection type: press (DW)
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• ETIM class: EC003023 Fitting with 1 connection
• intrastat code: 73079980
• brand: Apollo
• series: PowerPress Gas
• product type: 417G
• unsps: 40172402
• scip: d30775b1-132f-4657-80d3-acc91bda76c2
• etim-class: EC003023 Fitting with 1 connection
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• System specific: Yes
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 60.3mm
• Outer pipe diameter connection 1 (imperial): 2.37"
• Wall thickness, connection 1: 3.4mm
• Wall thickness, connection 1 (imperial): 0.13"
• Connection 1: Press sleeve
• Contour code: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Main colour fitting: Grey
• Length of connection 1: 62mm
• Length of connection 1 (imperial): 2.44"
• Working length connection 1: 9mm
• Working length connection 1 (imperial): 0.35"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TüV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Application: Closed Loop Heating/Cooling Installation, Compressed Air Installation, Wet Sprinkler Installation, Compressed Air, Natural Gas Installation
• Clean Bagged: No
• Coating: Zinc Nickel, Galvanized
• Collection: 417G Series
• End Connection 1: Press
• End Connections: Press
• Fitting Size 1: 2
• Fitting Sizes: 2 in
• Fitting Type: Cap
• IAPMO Listed: No
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• Maximum Temperature: 194
• NSF Certified: No
• Origin: Global
• Pressure Class: 200 psi
• Applicable Standard: ICC IC4, IAPMO IC-4, CSA 6.32/ANSI LC 4, CSA (Canada and US) IC-4, CRN, UPC, UMC, IPC, IFGC, ASME B31, NPCC, NFPA 13/13D/13R/54/58
• Finish: Zinc Nickel Plated Gray
• Material Specification: ASTM A106
• Nominal Size: 2 Inch
• Pressure Rating: 125 PSI
• Temperature Rating: -40 to 194 Deg F
• Custom Bundle: No
• MPN: PWR7482521
• Country of Origin: China
• Condition: New
• ADA Compliance: No
• Length (inches): 2.44
• Width (inches): 2.91
• Height (inches): 2.91
• Side A: 2"
