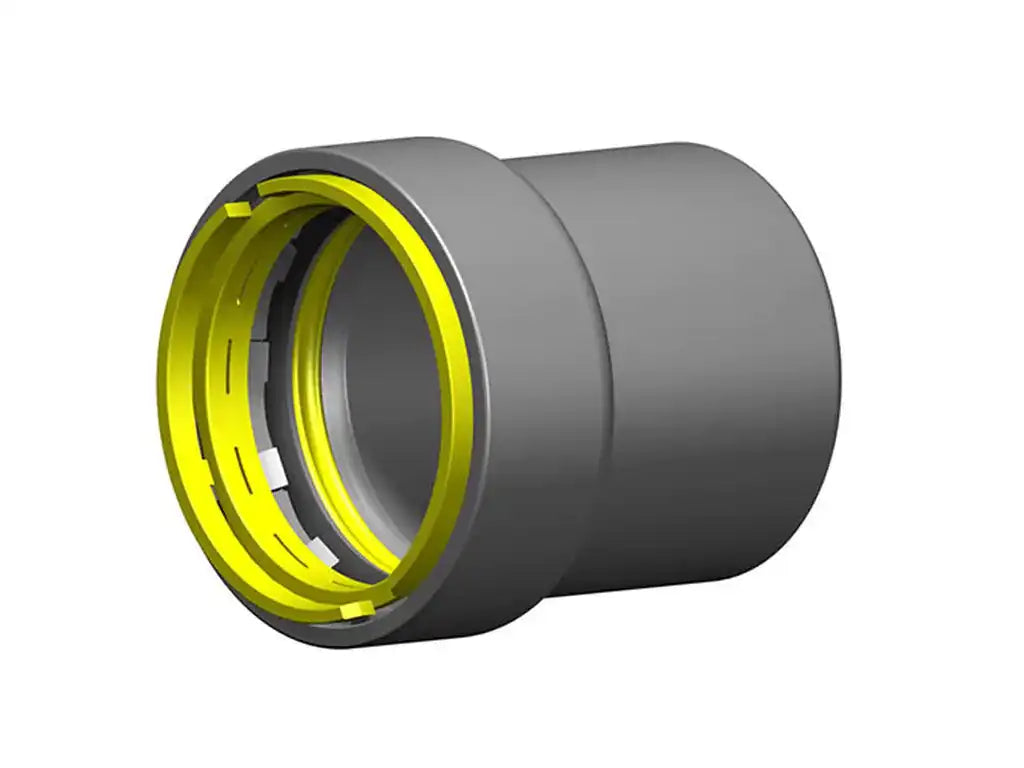

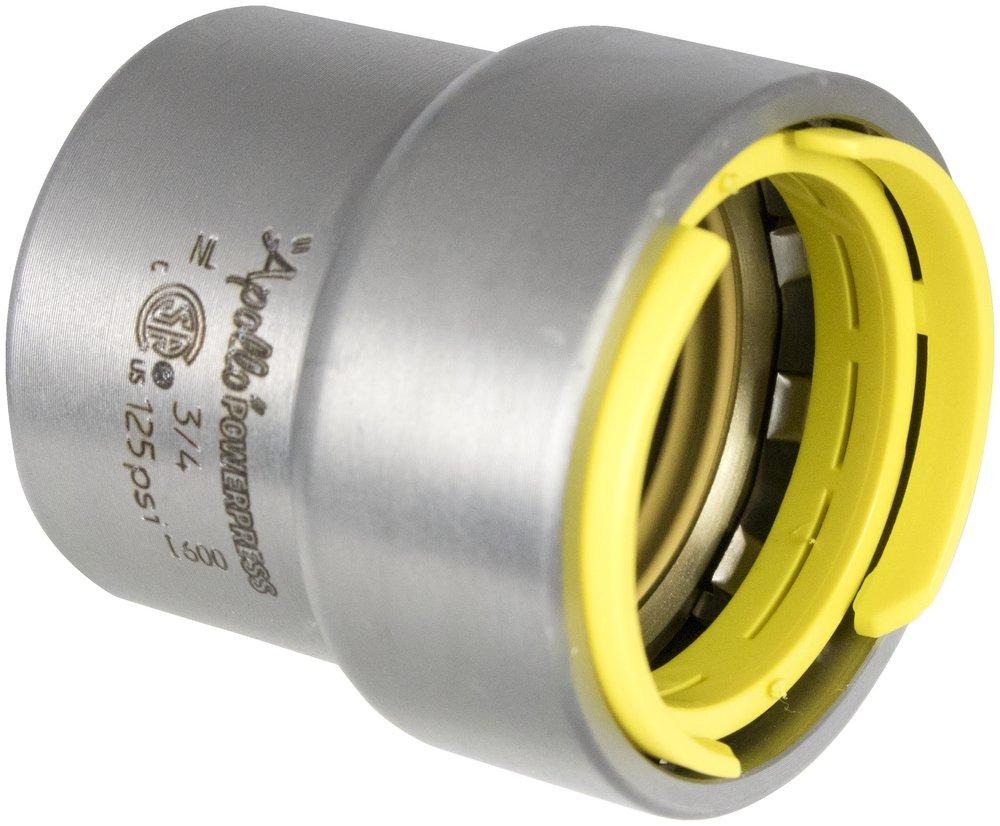

Apollo Powerpress 7482486 3/4 in. Press Carbon Steel Gas Cap with HNBR O-Ring

Product Description

The APOLLO POWERPRESS 7482486 is a 3/4 in. Press Carbon Steel Gas Cap with HNBR O-Ring. It is designed to support tight seals in various plumbing systems. This cap is compatible with Ridgid® & Milwaukee Press Tools and features a patented visual inspection ring & indicator (green) and a full port design.

• Patented Visual Inspection Ring & Indicator (Green)
• Full Port Design
• Ridgid® & Milwaukee Press Tool Compatible

Product Highlights

This carbon steel gas cap ensures tight tolerances that minimize leaks. It is made from durable materials for reliable performance under pressure.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7482486
• Country of Origin: Global

Technical Specifications

• Application: Compressed Air, Fuel Gas
• Coating: Zinc Nickel
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 3/4
• Fitting Sizes: 3/4 in
• GSA Approved: No
• IAPMO Listed: No
• ISO: No
• Material: Carbon Steel
• Material Type: A216-WCB
• Maximum Temperature: 302
• NSF Certified: No
• Recommended Valve Application: Natural Gas, Compressed Air
• Temperature Range: -40 to 194 Deg F
• UL Listed: Yes
• Valve Size: 3/4 in
• Item: Cap
• Capped: Yes
• Connection Type: Press
• Contour Code: DW
• D1: 1.05
• Finish: Zinc Nickel Plated
• Grade: Grade St 35
• Length Of Connection 1: 1 12/25"
• Max. Media Temp.: 194°F
• Medium Temp. (continuous): -40°F to +194°F
• Min. Media Temp.: -40°F
• Nominal Dia.: 20 mm
• Outer Pipe Dia. 1: 1.05"
• Seal Material: HNBR
• Series: POWERPRESS GAS Series
• Shape: End Coupling
• Size: 3/4"
• System Specific: Yes
• Wall Thickness Connection 1: 2.7 mm
• With Connection Indicator: Yes
• With De-aerator: No
• With Drain Valve: No
• With Sealing Rings/gaskets: No
• Working Length Connection 1: 0.26"
• Z1: 0.26
• Brand: Apollo PowerPress
• ADA Compliance: No
• Side A: 3/4"
• Fitting Type: Cap
• Item Type: Caps
• Manufacturer: Aalberts Integrated Piping Systems
• MPN: PWR7482486
• Product Family: Fittings
