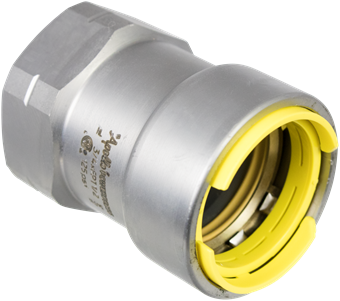

Apollo Powerpress 7482178 Gas Straight Connector 1 inchesxFPT1/2 inches

Product Description

The APOLLO POWERPRESS 7482178 is a female thread adapter for gas applications designed for thick wall steel pipe. By using Apollo PowerPress system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This straight reducer fitting is made of steel with zinc-nickel plating and HNBR sealing, suitable for gas applications with a pressure rating of PN 5.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7482178
• Country of Origin: Netherlands

Technical Specifications

• d1: 33.4
• DN1: 1"
• l1: 39
• z1: 3
• d2: 21.3
• DN2: 1/2"
• l2: 18
• z2: 2
• slw0: 41
• h: 17
• article number with gtin: PWR7482178 (08711985369694)
• product number with gtin: PWR7482178 (08711985369694)
• manufacturer: Aalberts integrated piping systems B.V. (VSH)
• item group: 403G 403G - Apollo PowerPress Gas female thread adapter (press x female thread)
• size: 1 x FPT1/2
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: straight, reducer
• connection type: press (DW), FPT - female thread conical (NPT)
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• intrastat code: 73079980
• brand: Apollo
• series: PowerPress Gas
• product type: 403G
• unsps: 40172502
• etim-class: EC003024 Fitting with 2 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Straight
• Model: 1-part
• Reducing: Yes
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 33.4mm
• Outer pipe diameter connection 1 (imperial): 1.31"
• Wall thickness, connection 1: 2.9mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: 1/2 inch (15)
• Outer pipe diameter connection 2: 21.3mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Connection 2: Internal thread conical (NPT)
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 57.4mm
• Length (imperial): 2.26"
• Length of connection 1: 39.4mm
• Length of connection 1 (imperial): 1.52"
• Working length connection 1: 3.4mm
• Working length connection 1 (imperial): 0.1"
• Length of connection 2: 18mm
• Length of connection 2 (imperial): 0.71"
• Working length connection 2: 1.5mm
• Working length connection 2 (imperial): 0.06"
• Wrench width: 41mm
• Wrench width (imperial): 1.61"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous (imperial)): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Product Type: Adapter Fitting
• Finish: Gray
• Collection: PowerPress Gas
• Material: Steel
• Applications: Natural Gas, Compressed Air
• Approvals: CSA LC-4, ICC LC4, IAPMO LC-4, CRN
• Segments: Industry, Commercial Building
• Style: 1-Part
• Volume: 0.15 Litre
• Mfg. Model: PWR7482178
• Type approval according to BBR/EKS: No
