Apollo Powerpress 7482156 Gas Straight Connector FF 3/4 inchesxFPT1/2 inches

Product Description

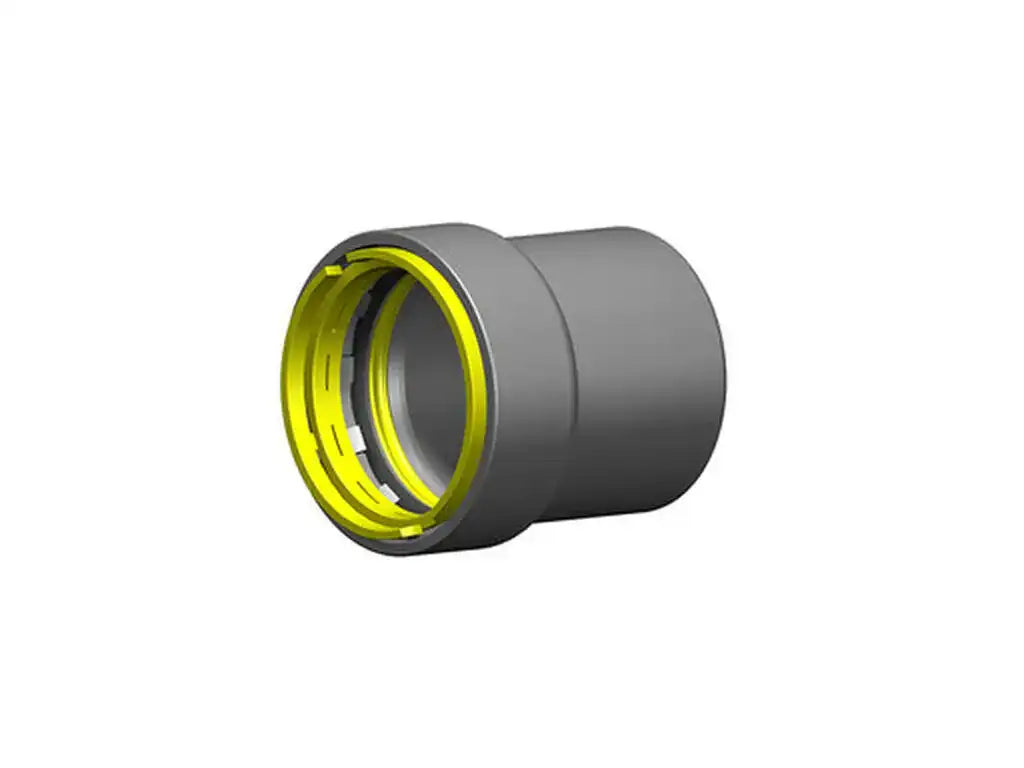

The Apollo PowerPress 7482156 is a female thread adapter for gas applications designed for thick wall steel pipe. By using Apollo PowerPress system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This adapter is expertly engineered to support plumbing needs, ensuring that every connection is secure and leak-free. It is specifically designed for gas lines, where reliability is non-negotiable.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7482156
• Country of Origin: Netherlands

Technical Specifications

• label: d1
• value: 26.7
• DN1: 3/4"
• l1: 34
• z1: 3
• d2: 21.3
• DN2: 1/2"
• l2: 16
• z2: 2
• slw0: 36
• h: 15
• etim-class: EC003024 Fitting with 2 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Straight
• Model: 1-part
• Reducing: Yes
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 20
• Outer pipe diameter connection 1: 26.7mm
• Outer pipe diameter connection 1 (imperial): 1.05"
• Wall thickness, connection 1: 2.7mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: 1/2 inch (15)
• Outer pipe diameter connection 2: 21.3mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Connection 2: Internal thread conical (NPT)
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 49.5mm
• Length (imperial): 1.95"
• Length of connection 1: 33.5mm
• Length of connection 1 (imperial): 1.32"
• Working length connection 1: 2.5mm
• Working length connection 1 (imperial): 0.1"
• Length of connection 2: 16mm
• Length of connection 2 (imperial): 0.63"
• Working length connection 2: 1.5mm
• Working length connection 2 (imperial): 0.06"
• Wrench width: 36mm
• Wrench width (imperial): 1.42"
• Medium temperature (continuous): -40 C - 90 C
• Medium temperature (continuous) (imperial): -40 F - 194 F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for T : No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Brand: APOLLO VALVES
• MPN: PWR7482156
• UPC: Does Not Apply
• Country of Origin: China
• ADA Compliance: No
• Length (inches): 1.54
• Width (inches): 1.95
• Height (inches): 1.54
• End Style: Press x Female
• Side A: 3/4"
• Side B: 1/2"
• Fitting Type: Adapters
• Item Type: Fittings
• Manufacturer: Aalberts Integrated Piping Systems
• Material: Carbon Steel
• Product Family: Fittings
