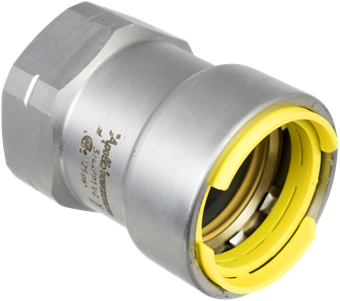

Apollo Powerpress 7482145 Gas Straight Connector FF 1/2 inchesxFPT1/2 inches

Product Description

The APOLLO POWERPRESS 7482145 is a female thread adapter for gas applications, designed for thick wall steel pipe. This 403G series adapter reduces installation times and ensures a clean working environment. It features DW-profile press fittings and valves in sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This gas adapter provides simple, fast connections and compact fittings for recessed work, featuring a yellow visual inspection ring and HNBR sealing element.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7482145
• Country of Origin: Netherlands

Technical Specifications

• article number with gtin: PWR7482145 (08711985369663)
• product number with gtin: PWR7482145 (08711985369663)
• manufacturer: Aalberts integrated piping systems B.V. (VSH)
• item group: 403G 403G - Apollo PowerPress Gas female thread adapter (press x female thread)
• size: 1/2 x FPT1/2
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: straight
• connection type: press (DW), FPT - female thread conical (NPT)
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• intrastat code: 73079980
• country of origin: Netherlands
• brand: Apollo
• series: PowerPress Gas
• product type: 403G
• unsps: 40172502
• scip: d30775b1-132f-4657-80d3-acc91bda76c2
• etim-class: EC003024 Fitting with 2 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Straight
• Model: 1-part
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 21.3mm
• Outer pipe diameter connection 1 (imperial): 0.84"
• Wall thickness, connection 1: 2.7mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: 1/2 inch (15)
• Outer pipe diameter connection 2: 21.3mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Connection 2: Internal thread conical (NPT)
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 1.83"
• Length of connection 1: 1.26"
• Working length connection 1: 0.16"
• Length of connection 2: 0.57"
• Wrench width: 1.1"
• Medium temperature (continuous): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Collection: 403G Series
• End Connection 1: Press
• End Connection 2: FPT
• End Connections: Press x FPT
• IAPMO Listed: No
• Fitting Size 1: 1/2
• Fitting Size 2: 1/2
• Fitting Sizes: 1/2 in
• Fitting Type: Adapter, Straight
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• Maximum Temperature: 194
• Origin: Global
• Pressure - Maximum: 200 psi
• Wrench width (imperial): 1.1"
• Medium temperature (continuous) (imperial): -40°F - 194°F
