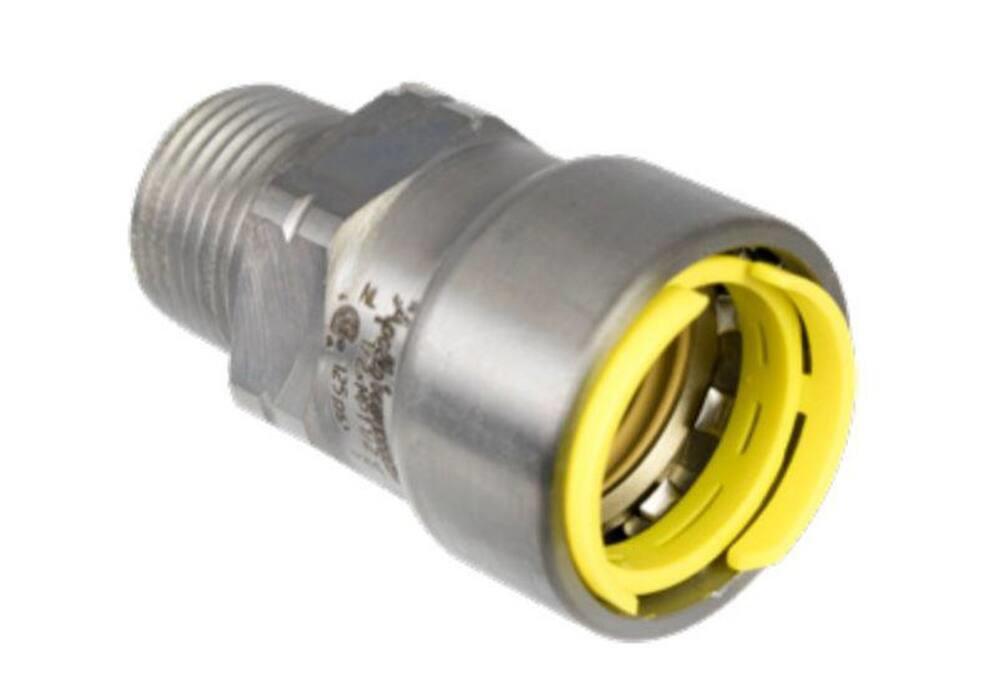

Apollo Powerpress 7482090 Gas Straight Connector FM 3/4 inchesxMPT3/4 inches

Product Description

The APOLLO POWERPRESS 7482090 is a male thread adapter for gas applications designed for thick wall steel pipe. Using the Apollo PowerPress system reduces installation times and ensures a clean working environment. It features a DW-profile press fitting and valve with a size of 3/4" x MPT3/4".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This gas straight connector ensures efficient installation and reliable performance for gas applications.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7482090
• Country of Origin: Netherlands

Technical Specifications

• Brand: Apollo
• MPN: PWR7482090
• Series: PowerPress Gas
• Product Type: 404G
• Article: Apollo PowerPress Gas straight connector FM 3/4"xMPT3/4"
• Item Group: 404G 404G - Apollo PowerPress Gas male thread adapter (press x male thread)
• Size: 3/4” x MPT3/4
• Materials: steel (St 35 (1.0308))
• Finishing: zinc-nickel plated
• Shape: straight
• Connection Type: press (DW), MPT - male thread conical (NPT)
• Pressure Rating (PN): PN 5
• Sealing: HNBR
• Min. Medium Temperature: -40 °F
• Max Medium Temperature: 194 °F
• Product Group: fittings
• ETIM Class: EC003024 Fitting with 2 connections
• Intrastat Code: 73079980
• UNSPS: 40172502
• Material Connection 1: Steel
• Material Quality Connection 1: St 35 (1.0308)
• Surface Protection Connection 1: Zinc/nickel
• Material Connection 2: Steel
• Material Quality Connection 2: St 35 (1.0308)
• Surface Protection Connection 2: Zinc/nickel
• Model: 1-part
• Reducing: No
• Eccentric: No
• System Specific: Yes
• Nominal Diameter Connection 1: DN 20
• Outer Pipe Diameter Connection 1: 26.7mm
• Outer Pipe Diameter Connection 1 (Imperial): 1.05"
• Wall Thickness, Connection 1: 2.7mm
• Wall Thickness, Connection 1 (Imperial): 0.11"
• Connection 1: Press sleeve
• Contour Code Connection 1: DW
• Nominal Diameter Connection 2: 3/4 inch (20)
• Outer Pipe Diameter Connection 2: 26.7mm
• Outer Pipe Diameter Connection 2 (Imperial): 1.05"
• Connection 2: External thread conical (NPT)
• Material Sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With Buffer Stud: Yes
• High Tensile Strength: Yes
• Length: 56mm
• Length (Imperial): 2.2"
• Length of Connection 1: 35.5mm
• Length of Connection 1 (Imperial): 1.4"
• Working Length Connection 1: 4.5mm
• Working Length Connection 1 (Imperial): 0.18"
• Length of Connection 2: 15.9mm
• Length of Connection 2 (Imperial): 0.63"
• Wrench Width: 36mm
• Wrench Width (Imperial): 1.42"
• Medium Temperature (Continuous): -40°C - 90°C
• Medium Temperature (Continuous) (Imperial): -40°F - 194°F
• With Thermal Insulation: No
• With Sealing Rings/Gaskets: No
• Capped: Yes
• With Connection Indicator: Yes
• With Drain Valve: No
• With De-Aerator: No
• FM Quality Mark: No
• LPCB Quality Mark: No
• ULC Quality Mark: No
• UL Quality Mark: No
• DIN-CERTCO Certificate: No
• VdS Quality Mark: No
• With Approval for TÜV: No
• DVGW Quality Mark for Gas: No
• DVGW Quality Mark for Water: No
• Certified According to NF 545: No
• KIWA Certified: No
• Gastec QA Mark: No
• KOMO Certified: No
• Gastec QA - AR 214 (H2): No
• Type Approval According to BBR/EKS: No
• Fitting Size 1: 3/4
• Fitting Size 2: 3/4
• Fitting Sizes: 3/4 in
• Fitting Type: Adapter, Straight
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• Maximum Temperature: 194
• Pressure - Maximum: 200 psi
• Mfg. Model: PWR7482090
