Apollo Powerpress 7481848 Gas Tee 3/4 x 1/2 CS

Product Description

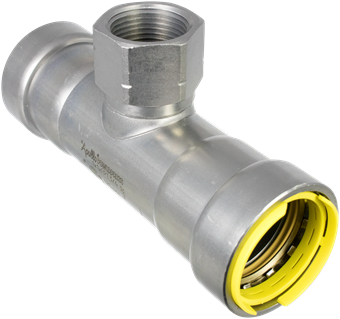

The APOLLO POWERPRESS 7481848 is a T-piece for natural gas applications, designed for thick wall steel pipe. By using Apollo PowerPress gas system installation times are reduced significantly and a clean working environment is assured. The range consists of DW profile press fittings and valves in sizes 1/2 IN up to and including 2 IN.

• Outstanding corrosion-resistance due to ZnNi-coating
• Clear identification of materials and dimensions
• Visu control ring and leak before pressed function

Product Highlights

This T-piece is designed for natural gas applications, reduces installation time, and ensures a clean working environment.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481848
• Country of Origin: Netherlands

Technical Specifications

• Connection Type: Press X Press X FPT
• Length: 4.52 IN
• Nominal Size: 3/4 X 3/4 X 1/2 IN
• Series/Model: 4712G
• Temperature Rating: -40 - 194 DEG F
• Wall Thickness: 0.11 IN
• Additional Specifications: Includes: HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator
• Industry Standards: CRN, CSA Certified, ICC Certified, IAPMO Certified
• Material: Carbon Steel
• Outside Diameter: 1.05 X 0.84 X 1.05 IN
• Sub Brand: PowerPress ®
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Material connection 3: Steel
• Material quality connection 3: St 35 (1.0308)
• Surface protection connection 3: Zinc/nickel
• Model: T-piece
• Angle: 90°
• Multi-part: No
• System specific: Yes
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Connection 2: Internal thread conical (NPT)
• Connection 3: Press sleeve
• Contour code connection 3: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Main colour fitting: Grey
• High tensile strength: Yes
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• With thermal insulation: No
• With buffer stud: Yes
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• etim-class: EC003025 Fitting with 3 connections
• Product Type: Tee
• Finish: Gray
• Collection: PowerPress Gas
• Shape: T-Piece, Reducer
• Applications: Natural Gas, Compressed Air
• Approvals: CSA LC-4, ICC LC4, IAPMO LC-4, CRN
• Sealing: HNBR
• Segments: Industry, Commercial Building
• Style: 1-Part
• Volume: 0.26 Litre
