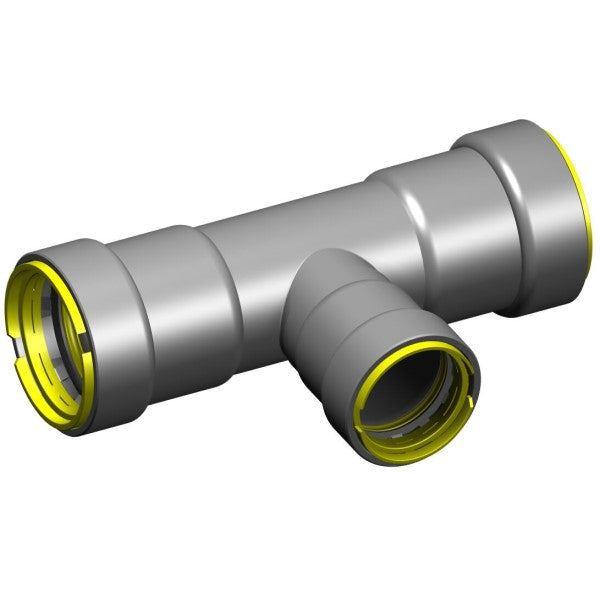

Apollo Powerpress 7481727 Gas Reduced T-Piece 1 inchesx1 inchesx1/2 inches

Product Description

The Apollo POWERPRESS 7481727 is a T-piece for natural gas applications, designed for thick wall steel pipe. Installation times are reduced significantly and a clean working environment is assured. It has a Visu-Control-ring and Leak Before Pressed-function. The system can be utilized on standard steel pipe and can be used with different brands of press tools.

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

The Apollo PowerPress system offers a complete solution with a wide range of flexibility. Simple, fast connections with visual press indicator.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481727
• Country of Origin: Netherlands

Technical Specifications

• d1: 33.4
• DN1: 1"
• l1: 66
• z1: 30
• d2: 21.3
• DN2: 1/2"
• l2: 60
• z2: 32
• d3: 33.4
• DN3: 1"
• l3: 66
• z3: 30
• etim-class: EC003025 Fitting with 3 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Material connection 3: Steel
• Material quality connection 3: St 35 (1.0308)
• Surface protection connection 3: Zinc/nickel
• Model: T-piece
• Angle: 90 00b0
• Reducing: Yes
• Multi-part: No
• System specific: Yes
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 33.4mm
• Outer pipe diameter connection 1 (imperial): 1.31"
• Wall thickness, connection 1: 2.9mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 15
• Outer pipe diameter connection 2: 21.3mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Wall thickness, connection 2: 2.7mm
• Wall thickness, connection 2 (imperial): 0.11"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Nominal diameter connection 3: DN 25
• Outer pipe diameter connection 3: 33.4mm
• Outer pipe diameter connection 3 (imperial): 1.31"
• Wall thickness, connection 3: 2.9mm
• Wall thickness, connection 3 (imperial): 0.11"
• Connection 3: Press sleeve
• Contour code connection 3: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Main colour fitting: Grey
• Length of connection 1: 66mm
• Length of connection 1 (imperial): 2.6"
• Working length connection 1: 30mm
• Working length connection 1 (imperial): 1.18"
• High tensile strength: Yes
• Length of connection 2: 59.5mm
• Length of connection 2 (imperial): 2.34"
• Working length connection 2: 31.5mm
• Working length connection 2 (imperial): 1.24"
• Length of connection 3: 66mm
• Length of connection 3 (imperial): 2.6"
• Working length connection 3: 30mm
• Working length connection 3 (imperial): 1.18"
• Medium temperature (continuous): -40 00b0C - 90 00b0C
• Medium temperature (continuous) (imperial): -40 00b0F - 194 00b0F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• With thermal insulation: No
• With buffer stud: Yes
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Country of Origin: US
• End Style: POWERPRESS
• Fitting/Connector Type: Tee
• Material: Carbon Steel
• Nominal Size: 1 x 1 x 1/2 in
• Series: 411RG
• Bend Angle: 90 00b0
• Connection Type: Press x Press
• Finish: Zinc Nickel Plated
• Grade: Grade St 35
• Seal Material: HNBR
• Shape: T-Piece, Reducer 90 00ba
• Size: 1" x 1" x 1/2"
• Min. Media Temp.: -40 00b0F
• Max. Media Temp.: 194 00b0F
• Outer Pipe Dia. 1: 1.31"
• Outer Pipe Dia. 2: 21/25"
• Outer Pipe Dia. 3: 1.31"
• Wall Thickness Connection 1: 2.9 mm
• Wall Thickness Connection 2: 2.7 mm
• Wall Thickness Connection 3: 2.9 mm
• Working Length Connection 1: 1.18"
• Working Length Connection 2: 1 6/25"
• Working Length Connection 3: 1.18"
• Z1: 1.18
• Z2: 1.24
• Z3: 1.18
