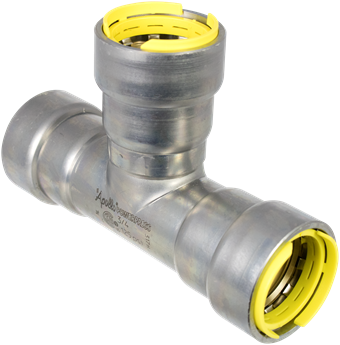

Apollo Powerpress 7481705 Gas T-Piece FFF 2 inches

Product Description

The APOLLO POWERPRESS 7481705 is a T-piece for natural gas applications, designed for thick wall steel pipe. By using Apollo PowerPress system installation times are reduced significantly and a clean working environment is assured. It consists of DW-profile press fittings and valves in sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This T-piece is designed for natural gas and compressed air applications, ensuring efficient and clean installations with its corrosion-resistant coating and clear material identification.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481705
• Country of Origin: Netherlands

Technical Specifications

• DN1: 2"
• DN2: 2"
• DN3: 2"
• d1: 60.3
• l1: 96
• z1: 43
• d2: 60.3
• l2: 100
• z2: 47
• d3: 60.3
• l3: 96
• z3: 43
• etim-class: EC003025 Fitting with 3 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Material connection 3: Steel
• Material quality connection 3: St 35 (1.0308)
• Surface protection connection 3: Zinc/nickel
• Model: T-piece
• Angle: 90
• Reducing: No
• Multi-part: No
• System specific: Yes
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 60.3mm
• Outer pipe diameter connection 1 (imperial): 2.37"
• Wall thickness, connection 1: 3.4mm
• Wall thickness, connection 1 (imperial): 0.13"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 50
• Outer pipe diameter connection 2: 60.3mm
• Outer pipe diameter connection 2 (imperial): 2.37"
• Wall thickness, connection 2: 3.4mm
• Wall thickness, connection 2 (imperial): 0.13"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Nominal diameter connection 3: DN 50
• Outer pipe diameter connection 3: 60.3mm
• Outer pipe diameter connection 3 (imperial): 2.37"
• Wall thickness, connection 3: 3.4mm
• Wall thickness, connection 3 (imperial): 0.13"
• Connection 3: Press sleeve
• Contour code connection 3: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Main colour fitting: Grey
• Length of connection 1: 96mm
• Length of connection 1 (imperial): 3.78"
• Working length connection 1: 43mm
• Working length connection 1 (imperial): 1.69"
• High tensile strength: Yes
• Length of connection 2: 99.5mm
• Length of connection 2 (imperial): 3.92"
• Working length connection 2: 46.5mm
• Working length connection 2 (imperial): 1.83"
• Length of connection 3: 96mm
• Length of connection 3 (imperial): 3.78"
• Working length connection 3: 43mm
• Working length connection 3 (imperial): 1.69"
• Medium temperature (continuous): -40 C - 90 C
• Medium temperature (continuous) (imperial): -40 F - 194 F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• With thermal insulation: No
• With buffer stud: Yes
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Product Type: Tee
• Finish: Gray
• Collection: PowerPress Gas
• Material: Steel
• Shape: T-Piece
• Applications: Natural Gas, Compressed Air
• Approvals: CSA LC-4, ICC LC4, IAPMO LC-4, CRN
• Sealing: HNBR
• Segments: Industry, Commercial Building
• Style: 1-Part
• Volume: 1.95 Litre
• Online Product ID: 5520510
