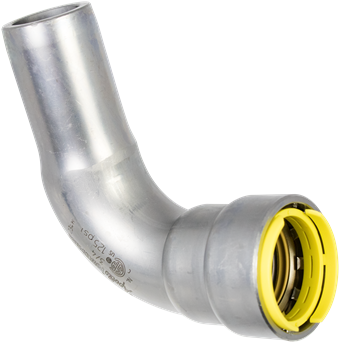

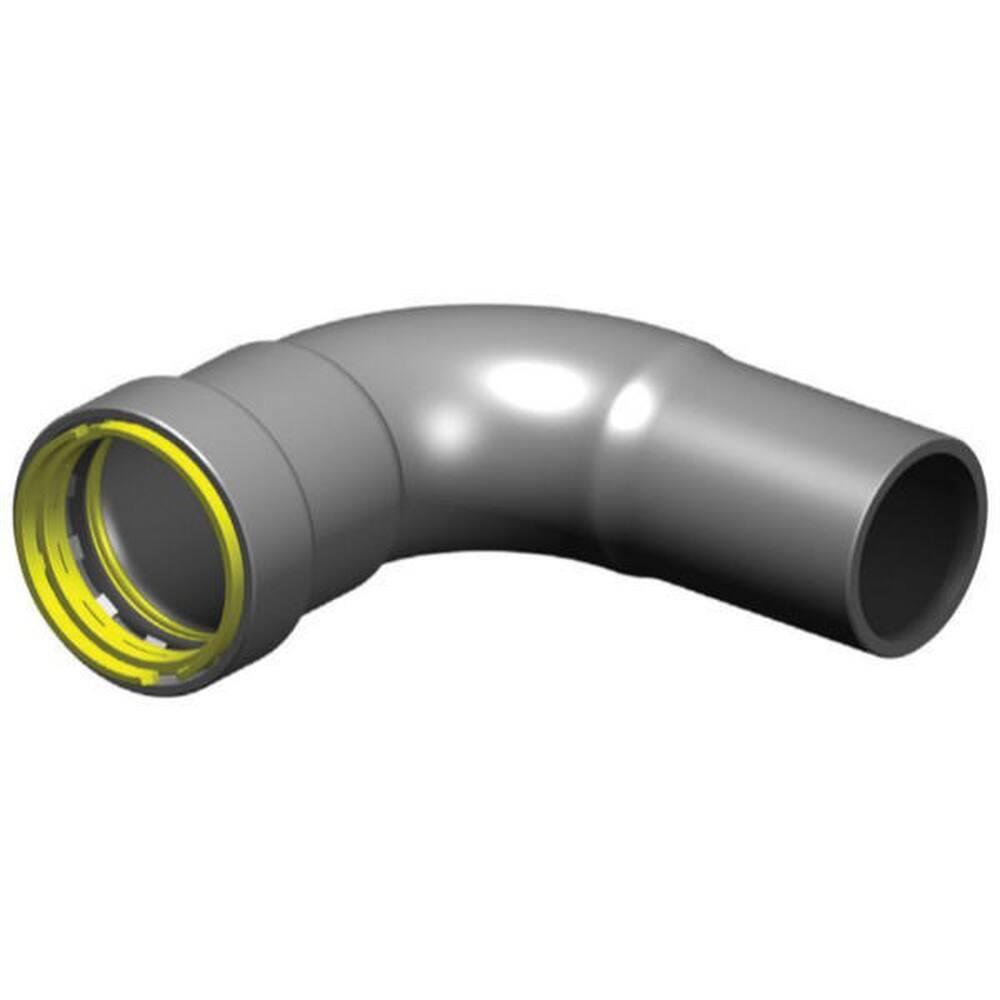

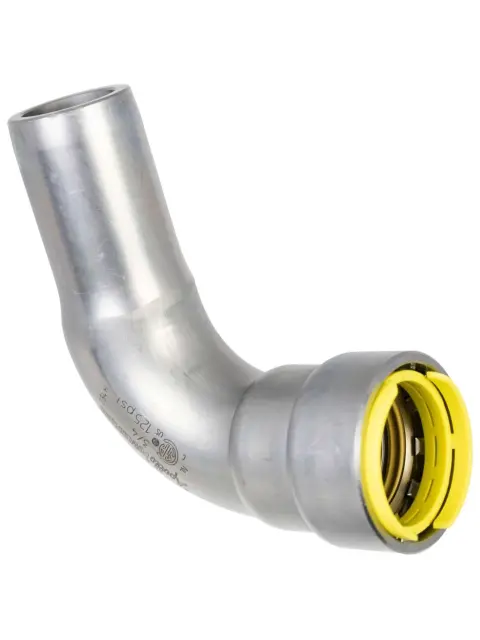

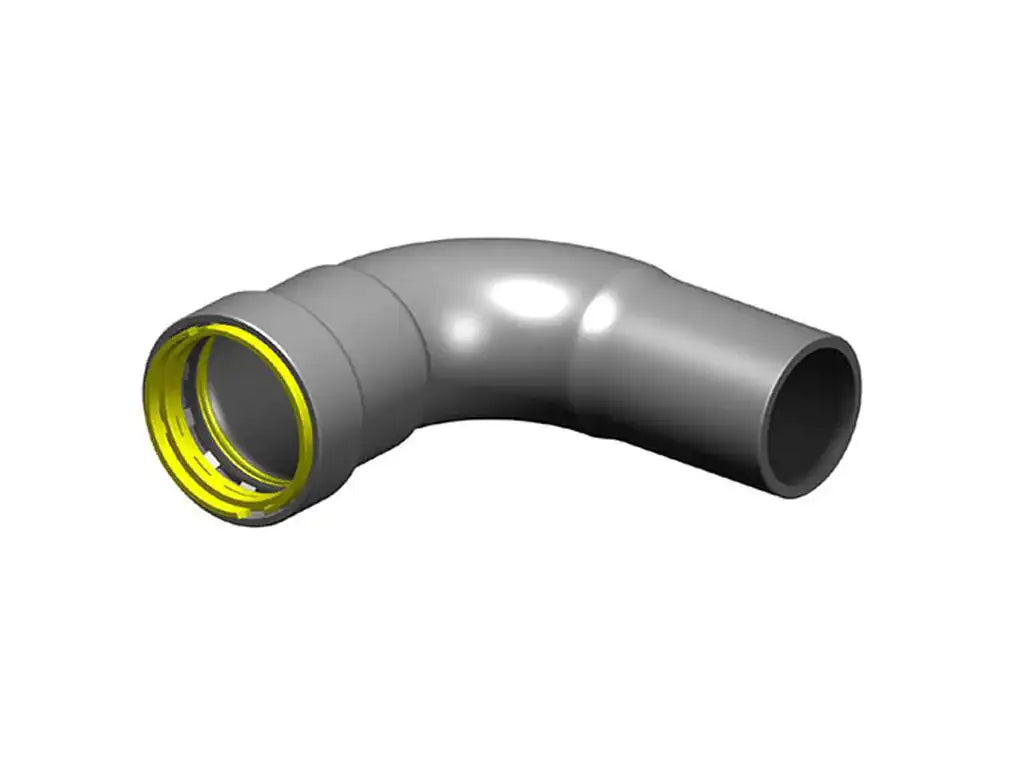

Apollo Powerpress 7481496 Gas Bend 90° FØ 1 inches

Product Description

The APOLLO POWERPRESS 7481496 is a 90° bend designed for gas applications using thick wall steel pipe. Installation times are significantly reduced with the Apollo PowerPress system, ensuring a clean working environment. It is designed for gas line installations, particularly in residential and commercial settings where space is a constraint.

• Features a Visu-Control-ring and Leak Before Pressed-function.
• Offers outstanding corrosion resistance due to ZnNi coating.
• Provides clear identification of materials and dimensions.

Product Highlights

This 90° gas bend ensures secure and efficient operation in plumbing setups, crafted from high-quality carbon steel for durability and corrosion resistance.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481496
• Country of Origin: Netherlands

Technical Specifications

• label d1: 33.4
• label DN1: 1"
• label l1: 76
• label z1: 40
• label d2: 33.4
• label DN2: 1"
• label l2: 91
• radius: 38
• angle: 90
• size: 1"
• color: grey
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: Bend, 90
• connection type: press (DW), tube end
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• intrastat code: 73079980
• country of origin: Netherlands
• brand: Apollo
• series: PowerPress Gas
• product type: 407-2G
• unsps: 40172802
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Bend
• Model: 1-part
• Bend angle: 90°
• Bend radius: 38mm
• Bend radius (imperial): 1.5"
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 25
• Outer pipe diameter connection 1: 33.4mm
• Outer pipe diameter connection 1 (imperial): 1.31"
• Wall thickness, connection 1: 2.9mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 25
• Outer pipe diameter connection 2: 33.4mm
• Outer pipe diameter connection 2 (imperial): 1.31"
• Connection 2: Soldered end
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 93mm
• Length (imperial): 3.66"
• Length of connection 1: 76mm
• Length of connection 1 (imperial): 2.99"
• Working length connection 1: 40mm
• Working length connection 1 (imperial): 1.57"
• Length of connection 2: 90.5mm
• Length of connection 2 (imperial): 3.56"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Clean Bagged: No
• Coating: Zinc Nickel, Galvanized
• Collection: 407-2G Series
• Elbow Degree: 90
• End Connection 1: Press
• End Connection 2: Fitting
• End Connections: Press x Fitting
• FM Approved: No
• Fitting Size 1: 1
• Fitting Size 2: 1
• Fitting Sizes: 1 in
• Fitting Type: Gas Press Elbow
• IAPMO Listed: No
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• Maximum Temperature: 194
• NSF Certified: No
• Origin: Global
• Pressure Class: 200 psi
• UL Listed: No
• Brand: Apollo PowerPress
• ADA Compliance: No
• Angle: 90 Deg
• Length (inches): 3.64
• Width (inches): 4.45
• Height (inches): 1.79
• End Style: Fitting x Press
• Side A: 1"
• Side B: 1"
• Item Type: Elbows
• MPN: PWR7481496
• Product Family: Fittings
• Outer Pipe Dia. 1: 1.31"
• Outer Pipe Dia. 2: 1.31"
• Grade: Grade St 35
• Max. Media Temp.: 194°F
• Min. Media Temp.: -40°F
• Wall Thickness Connection 1: 2.9 mm
• Z1: 1.58
