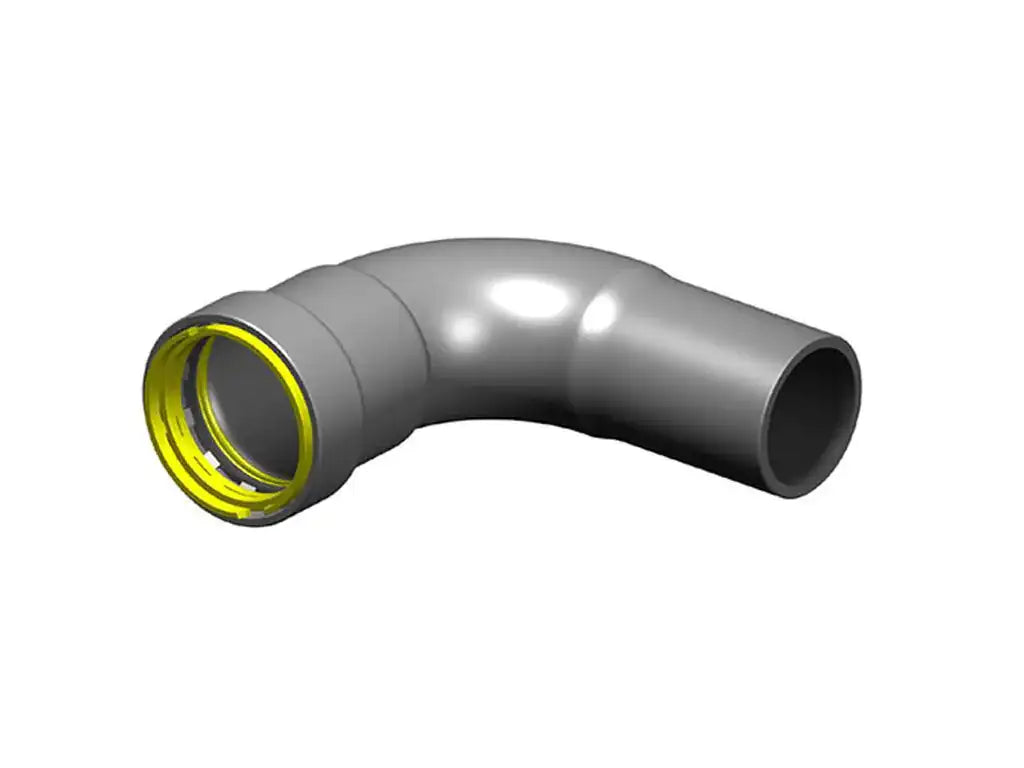

Apollo Powerpress 7481474 Gas Street Elbow 90° (Press X Insert)

Product Description

The Apollo PowerPress 7481474 is a 90° bend designed for gas applications using thick wall steel pipe. This elbow fitting is part of the Apollo PowerPress system, which reduces installation times and ensures a clean working environment. It features a DW-profile press fitting suitable for sizes 1/2" up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

Designed for gas applications, this 90° elbow fitting ensures secure and efficient connections in plumbing systems.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481474
• Country of Origin: Netherlands

Technical Specifications

• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Bend
• Model: 1-part
• Bend angle: 90°
• Reducing: No
• Eccentric: No
• System specific: Yes
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Connection 2: Soldered end
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• Item: Elbow, 90 Degree
• Bend Radius: 0.98"
• Connection Type: Press x Tube End
• D1: 0.84
• D2: 0.84
• Finish: Zinc Nickel Plated
• Grade: Grade St 35
• Length: 66 mm
• Length Of Connection 1: 2.17"
• Length Of Connection 2: 2.7"
• Material: Steel
• Max. Media Temp.: 194°F
• Min. Media Temp.: -40°F
• Outer Pipe Dia. 1: 21/25"
• Outer Pipe Dia. 2: 21/25"
• Seal Material: HNBR
• Series: POWERPRESS GAS Series
• Size: 1/2"
• Wall Thickness Connection 1: 2.7 mm
• Working Length Connection 1: 1.06"
• Z1: 1.06
• Brand: Apollo PowerPress
• ADA Compliance: No
• Angle: 90 Deg
• End Style: Fitting x Press
• Side A: 1/2"
• Side B: 1/2"
• Fitting Type: Gas Press Elbow
• Item Type: Elbows
• Manufacturer: Aalberts Integrated Piping Systems
• MPN: PWR7481474
• Product Family: Fittings
