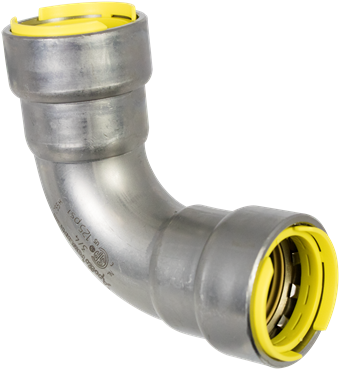

Apollo Powerpress 7481463 Gas Bend 90° FF 2 inches

Product Description

The APOLLO POWERPRESS 7481463 is a 90° bend designed for gas applications using thick wall steel pipe. The Apollo PowerPress system significantly reduces installation times and ensures a clean working environment. It features DW-profile press fittings and valves in sizes up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This 90 degree bend fitting offers fast connections and a visual press indicator for easy installation.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481463
• Country of Origin: Netherlands

Technical Specifications

• d1: 60.3
• DN1: 2"
• l1: 122
• z1: 69
• d2: 60.3
• DN2: 2"
• l2: 122
• z2: 69
• radius: 65
• angle: 90
• article number with gtin: PWR7481463 (08711985369083)
• product number with gtin: PWR7481463 (08711985369083)
• manufacturer: Aalberts integrated piping systems B.V. (VSH)
• item group: 407G 407G - Apollo PowerPress Gas elbow 90° (2 x press)
• size: 2"
• weight: 2.64 lb
• dimensions: 6.22x6.22x2.91 "
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: Bend, 90
• connection type: press (DW), press (DW)
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• intrastat code: 73079980
• country of origin: Netherlands
• brand: Apollo
• series: PowerPress Gas
• product type: 407G
• unsps: 40172802
• etim-class: EC003024 Fitting with 2 connections
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Shape: Bend
• Model: 1-part
• Bend angle: 90°
• Bend radius: 65mm
• Bend radius (imperial): 2.56"
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 60.3mm
• Outer pipe diameter connection 1 (imperial): 2.37"
• Wall thickness, connection 1: 3.4mm
• Wall thickness, connection 1 (imperial): 0.13"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 50
• Outer pipe diameter connection 2: 60.3mm
• Outer pipe diameter connection 2 (imperial): 2.37"
• Wall thickness, connection 2: 3.4mm
• Wall thickness, connection 2 (imperial): 0.13"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 158mm
• Length (imperial): 6.22"
• Length of connection 1: 121.5mm
• Length of connection 1 (imperial): 4.78"
• Working length connection 1: 68.5mm
• Working length connection 1 (imperial): 2.7"
• Length of connection 2: 121.5mm
• Length of connection 2 (imperial): 4.78"
• Working length connection 2: 68.5mm
• Working length connection 2 (imperial): 2.7"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 2 in
• End Style: POWERPRESS
• Material: Carbon Steel
