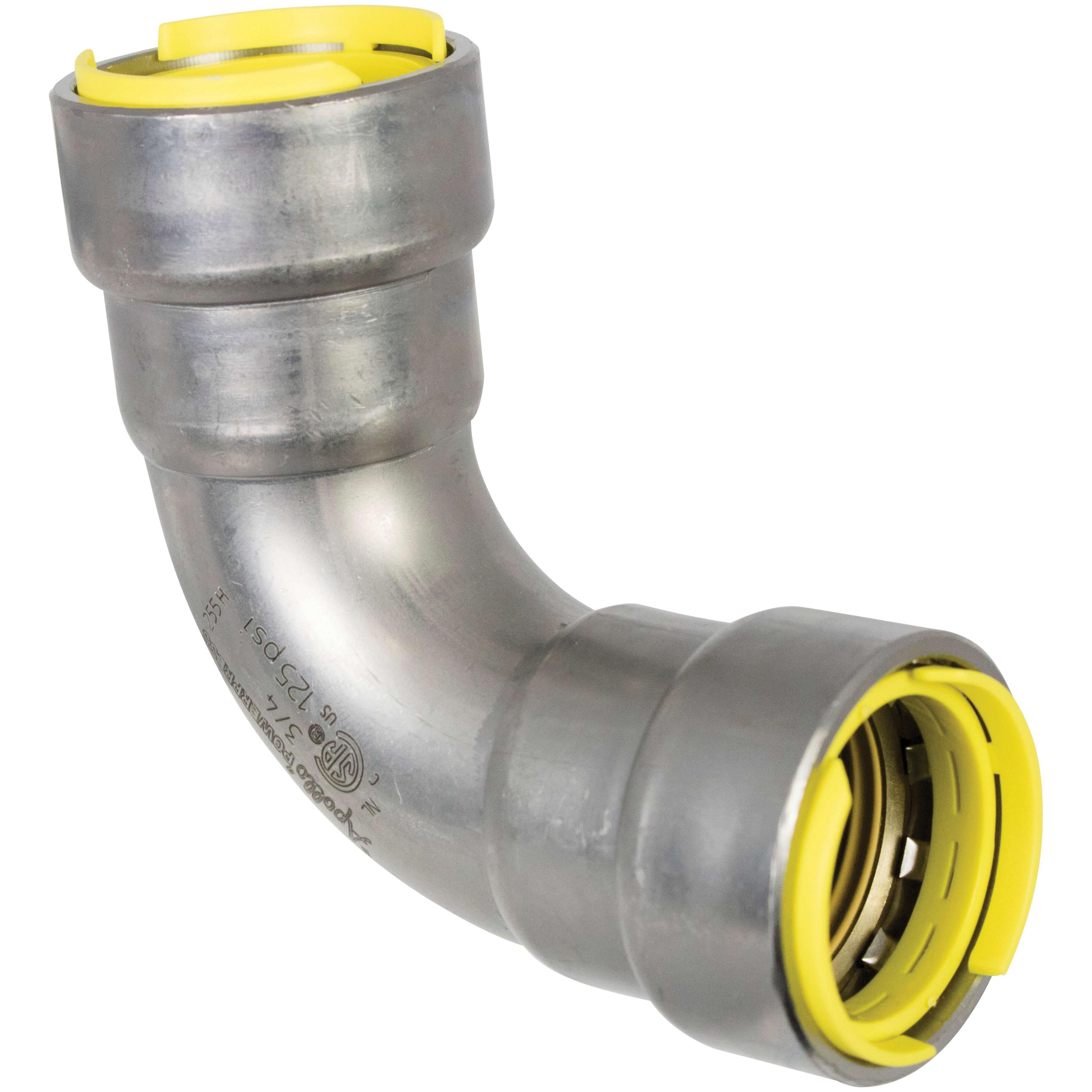

Apollo Powerpress 7481419 Gas Elbow 90° (2 x Press)

Product Description

The APOLLO POWERPRESS 7481419 is a 90° bend for gas applications, designed for thick wall steel pipe. This elbow utilizes the Apollo PowerPress system to reduce installation times and ensure a clean working environment. It features DW-profile press fittings and valves in sizes from 1/2" up to 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

The Apollo PowerPress system offers fast connections and a visual press indicator for a wide range of flexibility.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481419
• Country of Origin: Netherlands

Technical Specifications

• manufacturer: Aalberts integrated piping systems B.V. (VSH)
• materials: steel (St 35 (1.0308))
• finishing: zinc-nickel plated
• shape: Bend, 90°
• connection type: press (DW)
• pressure rating (PN): PN 5
• sealing: HNBR
• min. medium temperature: -40 °F
• max medium temperature: 194 °F
• product group: fittings
• brand: Apollo
• series: PowerPress Gas
• product type: 407G
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Model: 1-part
• Bend angle: 90°
• Reducing: No
• Eccentric: No
• System specific: Yes
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Clean Bagged: No
• Coating: Zinc Nickel, Galvanized
• Collection: 407G Series
• Elbow Degree: 90
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 1/2
• Fitting Size 2: 1/2
• Fitting Sizes: 1/2 in
• Fitting Type: Straight, Elbow
• IAPMO Listed: No
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• Maximum Temperature: 194
• NSF Certified: No
• Origin: Domestic
• Pressure Class: 200 psi
• UL Listed: No
• Connection Size: 1/2 in
• Finish: Zinc Nickel-Coated
• Fitting Size: 1/2 in
• Temperature Rating: -40 to 194 deg F
• d1: 21.3
• DN1: 1/2"
• l1: 55
• z1: 27
• d2: 21.3
• DN2: 1/2"
• l2: 55
• z2: 27
• radius: 25
• angle: 90
• product number with gtin: PWR7481419 (08711985369038)
• item group: 407G 407G - Apollo PowerPress Gas elbow 90° (2 x press)
• size: 1/2"
• etim-class: EC003024 Fitting with 2 connections
• Shape: Bend
• Bend radius: 25mm
• Bend radius (imperial): 0.98"
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 21.3mm
• Outer pipe diameter connection 1 (imperial): 0.84"
• Wall thickness, connection 1: 2.7mm
• Wall thickness, connection 1 (imperial): 0.11"
• Nominal diameter connection 2: DN 15
• Outer pipe diameter connection 2: 21.3mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Wall thickness, connection 2: 2.7mm
• Wall thickness, connection 2 (imperial): 0.11"
• Length: 71mm
• Length (imperial): 2.8"
• Length of connection 1: 55mm
• Length of connection 1 (imperial): 2.17"
• Working length connection 1: 27mm
• Working length connection 1 (imperial): 1.06"
• Length of connection 2: 55mm
• Length of connection 2 (imperial): 2.17"
• Working length connection 2: 27mm
• Working length connection 2 (imperial): 1.06"
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1/2 in
• End Style: POWERPRESS
