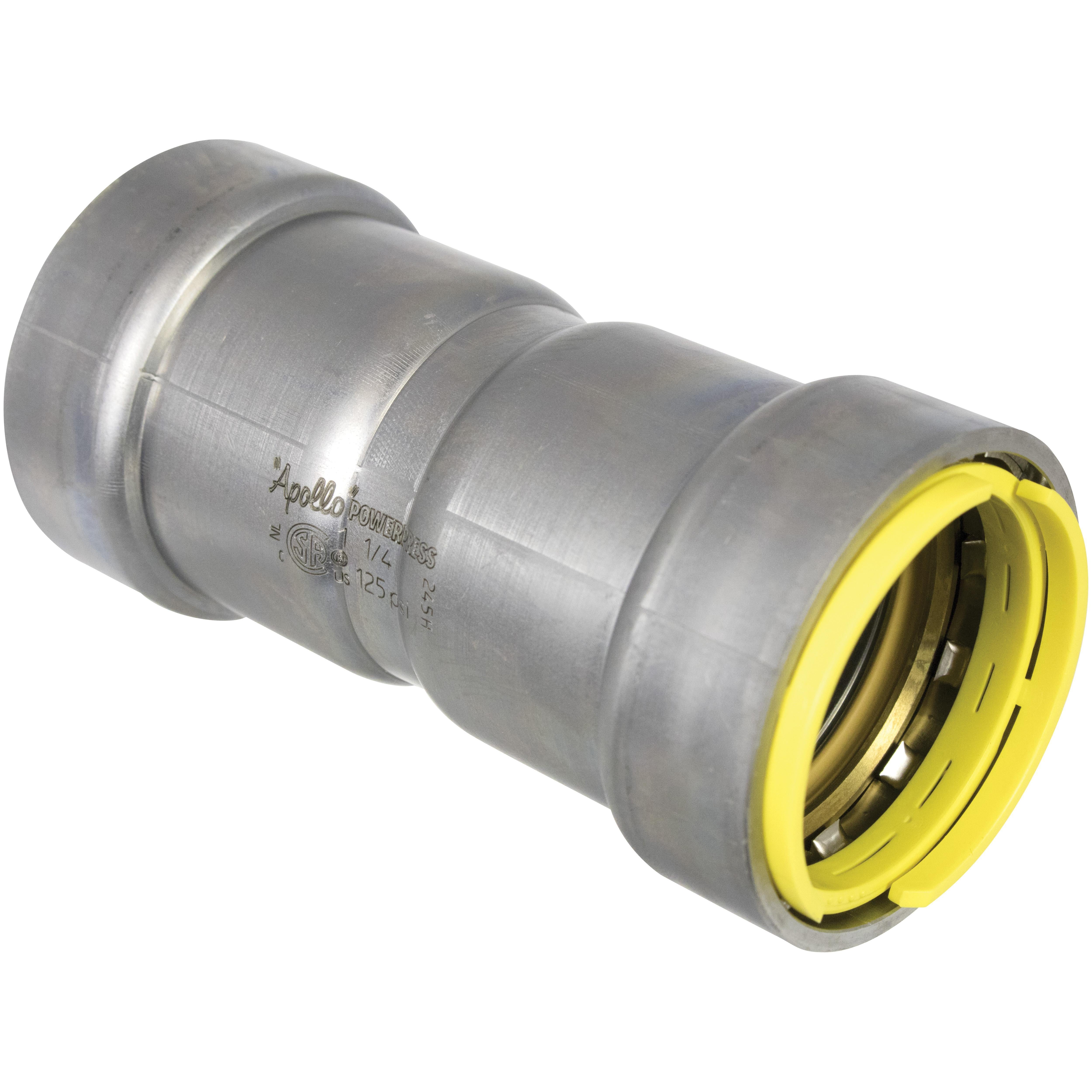

Apollo Powerpress 7481309 Gas Straight Coupling FF 3/4 inches

Product Description

The APOLLO POWERPRESS 7481309 is a straight coupling designed for oil and gas applications using thick wall steel pipe. The Apollo PowerPress system reduces installation times and ensures a clean working environment. It features a DW-profile press fitting suitable for sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This coupling offers fast connections and compact fittings for efficient installations. It features a yellow visual inspection ring and HNBR sealing element.

Product Information

Standard Information

• Brand: APOLLO POWERPRESS
• Manufacturer Part Number: 7481309
• Country of Origin: Netherlands

Technical Specifications

• DN1: 3/4"
• DN2: 3/4"
• Manufacturer: Aalberts integrated piping systems B.V. (VSH)
• Item group: 400G 400G - Apollo PowerPress Gas coupling with stop (2 x press)
• Size: 3/4"
• Materials: steel (St 35 (1.0308))
• Finishing: zinc-nickel plated
• Shape: straight
• Connection Type: Press x Press
• Pressure Rating (PN): PN 5
• Sealing: HNBR
• Min. medium temperature: -40 °F
• Max medium temperature: 194 °F
• Product group: fittings
• ETIM class: EC003024 Fitting with 2 connections
• Intrastat code: 73079980
• Brand: Apollo
• Series: 400G
• Product type: 400G
• UNSPS: 40172602
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• Material connection 2: Steel
• Material quality connection 2: St 35 (1.0308)
• Surface protection connection 2: Zinc/nickel
• Model: 1-part
• Reducing: No
• Eccentric: No
• System specific: Yes
• Nominal diameter connection 1: DN 20
• Outer pipe diameter connection 1: 26.7mm
• Outer pipe diameter connection 1 (imperial): 1.05"
• Wall thickness, connection 1: 2.7mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code connection 1: DW
• Nominal diameter connection 2: DN 20
• Outer pipe diameter connection 2: 26.7mm
• Outer pipe diameter connection 2 (imperial): 1.05"
• Wall thickness, connection 2: 2.7mm
• Wall thickness, connection 2 (imperial): 0.11"
• Connection 2: Press sleeve
• Contour code connection 2: DW
• Main colour fitting: Grey
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• With buffer stud: Yes
• High tensile strength: Yes
• Length: 74mm
• Length (imperial): 2.91"
• Length of connection 1: 37mm
• Length of connection 1 (imperial): 1.46"
• Working length connection 1: 6mm
• Working length connection 1 (imperial): 0.24"
• Length of connection 2: 37mm
• Length of connection 2 (imperial): 1.46"
• Working length connection 2: 6mm
• Working length connection 2 (imperial): 0.24"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With thermal insulation: No
• With sealing rings/gaskets: No
• Capped: Yes
• With connection indicator: Yes
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: Yes
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• ASME: ASME B31
• Clean Bagged: No
• Coating: Zinc Nickel
• Fitting Size 1: 3/4
• Fitting Size 2: 3/4
• Fitting Sizes: 3/4 in
• Fitting Type: Coupling, Straight
• IAPMO Listed: Yes
• Material: Carbon Steel, Rubber
• Material Type: HNBR
• Maximum Temperature: 194
• NSF Certified: No
• Origin: Global
• Connection Size: 3/4 in
• Finish: Zinc Nickel-Coated
• Pressure Rating: 125 psi
• Country of Origin: United States
