Apollo LD14114BE12A BFV, LUG, 14, 141, DI/ALUM BRZ/

Product Description

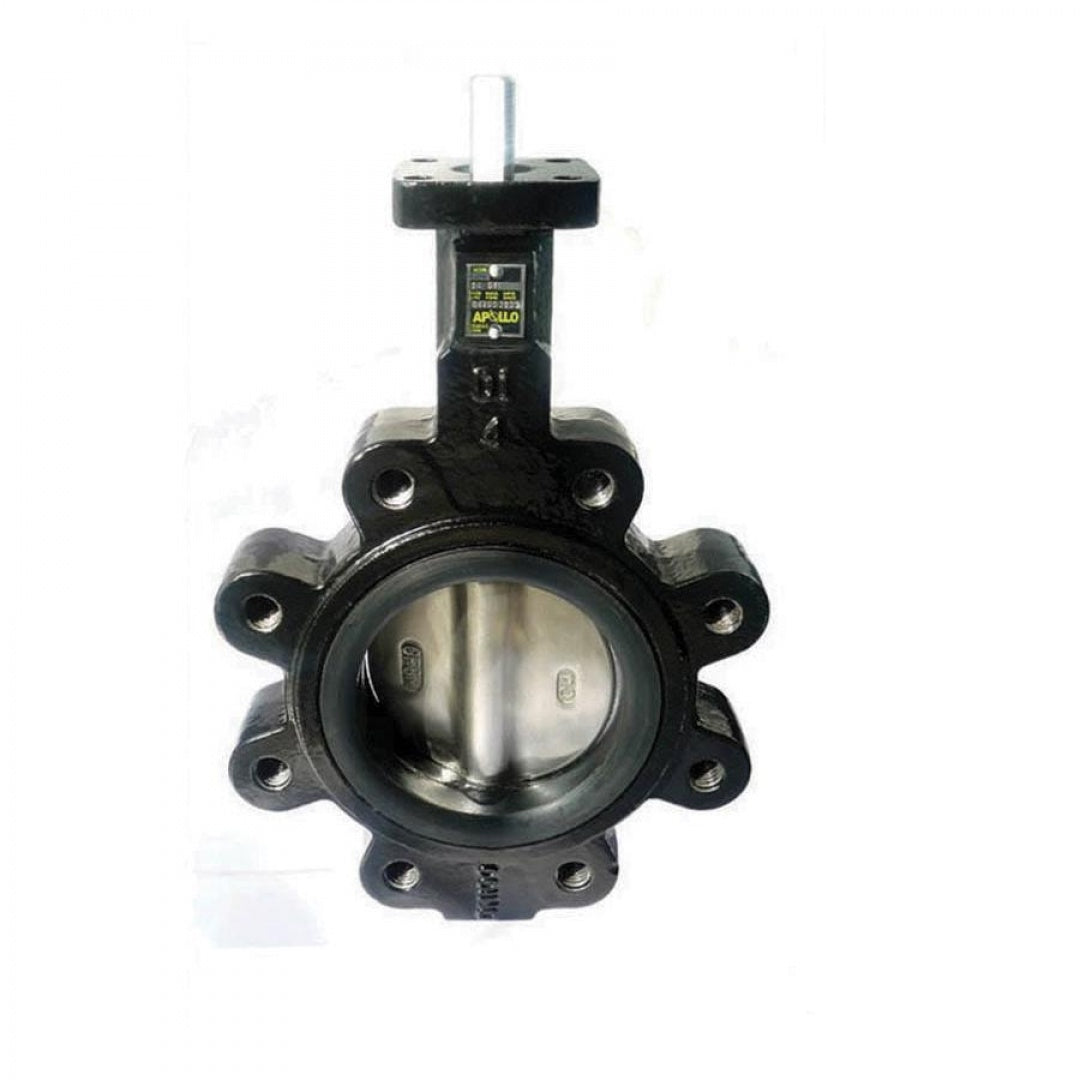

Apollo, LD14114BE12A is a butterfly valve designed for tough applications. It features a resilient seated lug style with a nominal size of fourteen inches and is suitable for various industrial and mechanical functions.

• Designed for bidirectional dead end service at rated pressure
• Equipped with a durable ductile iron body and aluminum bronze disc
• Factory tested for reliability and performance under pressure

Product Highlights

This valve is standard-compliant and supports HVAC and commercial applications, ensuring robust performance.

Product Information

Standard Information

• Manufacturer: Apollo Conbraco Industries
• Actuator Type: Gear Operator

Technical Specifications

• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• End Style: Flanged
• Nominal Size: 14 inches
• Pressure Class: 125/150 lb
• Series: LD141
• Softgoods Material: EPDM
• Temperature Rating: -20 to 250 degrees F Intermittent / 225 degrees F Continuous
• Top to Inlet Center: 14-1/2 inches
