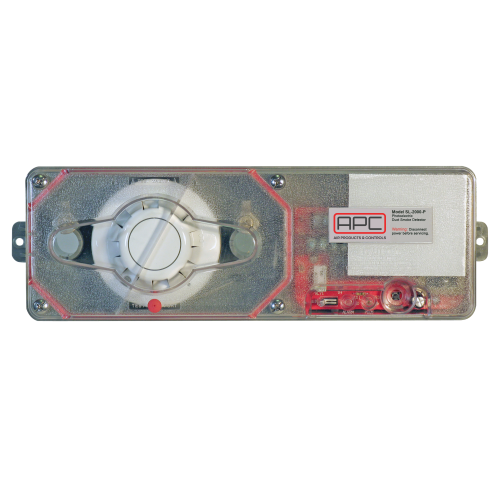

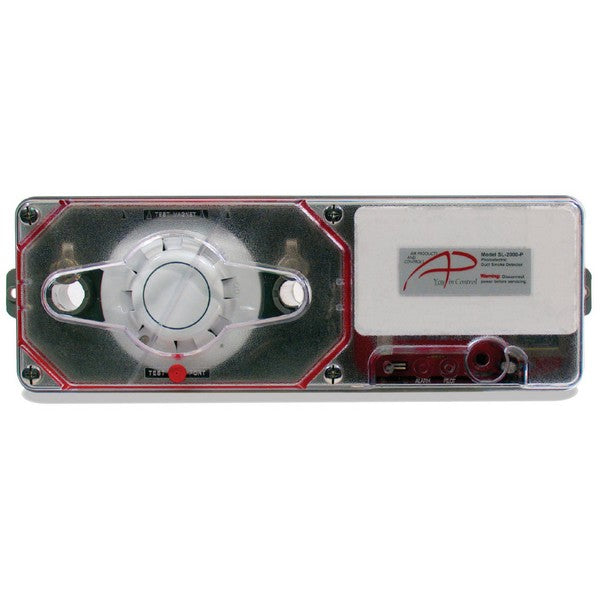

Apollo AP-SL-2000-P Sl-2000-P Photoelectric Duct Smoke Detector

Product Description

The APOLLO AP-SL-2000-P photoelectric conventional duct detector is designed for early detection of smoke and combustion byproducts in HVAC ducts within commercial, industrial, and residential environments. It prevents smoke recirculation via air handling systems and can shut down entire systems upon smoke detection, meeting NFPA, ICC, and local code requirements.

• Listed for velocities between 100-4000 ft./min
• Operating voltages: 230VAC, 115VAC, 24VAC, 24VDC
• Compatible with building automation and fire alarm systems

Product Highlights

This photoelectric duct smoke detector features tool-free components, high-temperature applications, and interconnectivity for up to 30 units, ensuring efficient and reliable smoke detection.

Product Information

Standard Information

• Brand: APOLLO
• Manufacturer Part Number: AP-SL-2000-P
• Country of Origin: USA

Technical Specifications

• Application: The unit is designed to prevent the recirculation or spread of smoke by air handling systems, fans and blowers.
• Status Indicator: Alarm Red
• Flashing LED: Yes
• Humidity (Min): 10% RH
• Humidity (Max): 85% RH
• Humidity Note: no condensation or icing
• Humidity: 10% to 85% (no condensation or icing)
• Standards: UL 268A, ULC S529
• Materials Housing: Polycarbonate
• Detection Principle: Photo-electric light scattering.
• Number Of Sampling Pipe Inlets: 1
• Exhaust Airpipe Outlet: 18.8mm
• Housing Type: Standard enclosure
