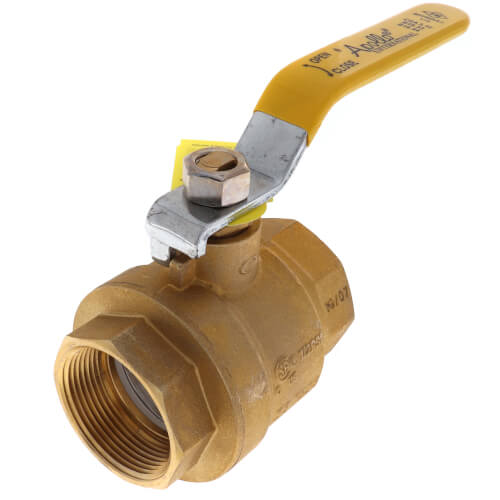

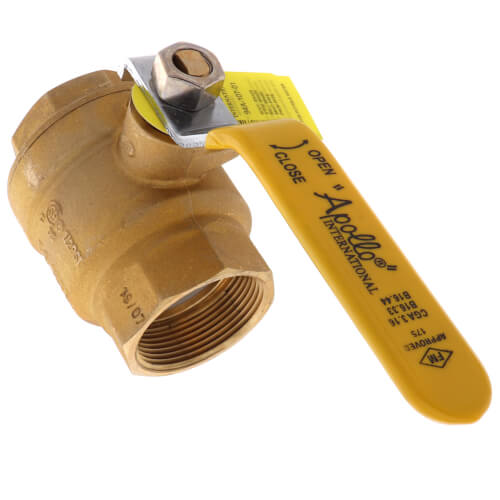

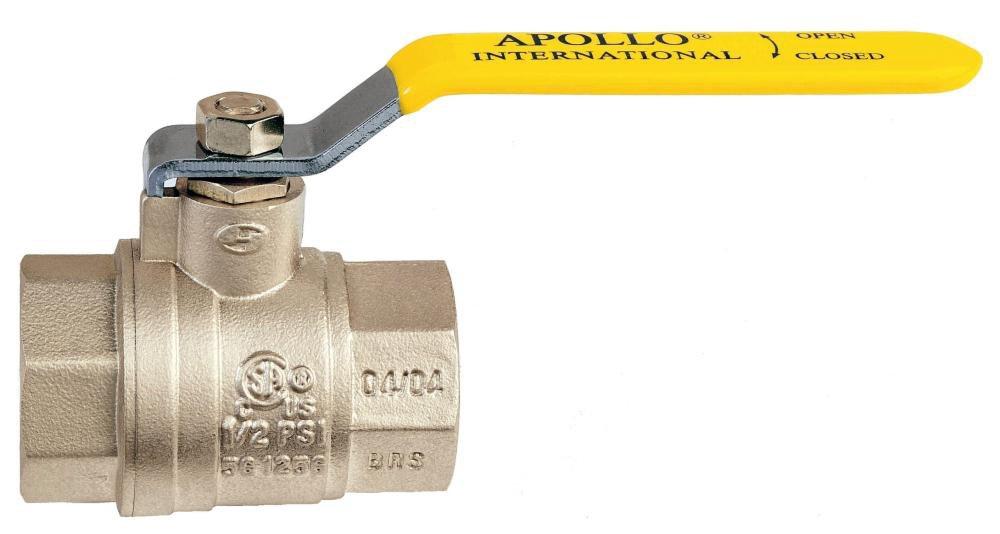

Apollo Valves 94A10701 Series 1-1/2 in Forged Brass Full Port NPT 600 Ball Valve

Product Description

The Apollo Valves 94A10701 Series 1-1/2 inch Forged Brass Full Port NPT 600 Ball Valve delivers exceptional performance for various applications like HVAC, fuel gases, and fire protection systems. This valve is built for durability and reliable operation.

• Full port design for maximum flow
• Designed for HVAC, fuel gases, and fire protection systems
• Rated for 600 psi

Product Highlights

This valve features a blowout-proof stem design and adjustable stem packing nut, ensuring safety and maintenance ease. The forged brass construction provides longevity, while the EPDM stem seal/O-ring and PTFE stem packing enhance sealing performance.

Product Information

Standard Information

• Manufacturer: Apollo Valves
• MPN: 94A10701

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1-1/2 in
• Connection Type: NPT
• Dimension: 3.66 in L
• Flow Co-Efficient: 40 Cv
• Material: Brass
• Model: 94A-100
• Operator Type: Plated Steel with PVC Grip Handle
• Pressure Rating: 600 psi CWP
• Seat Material: PTFE
• Series: 94A
• Stem Material: Chrome-Plated Brass
• Temperature Rating: 0 - 400 deg F
• Type: 2-Piece, Full-Port
• Standards/Certifications: cCSAus 226234, ANSI Z21.15, ASME B16.4, ASME B16.33, UL125 YSDT, UL258 VQGU, UL842 YRBX, YRPV and MHKZ, UL1477 YQNZ listed, FM 114 approved
