Apollo Valves 88A10A01 88A-100 Series 4 In. Carbon Steel Standard Port Flanged 150# Ball Valve

APOLLO VALVES
Brand: APOLLO VALVES
SKU: 88A10A01
Ships in 4 - 5 Weeks
$2,347.36
$2,347.36
LTL Delivery

This product weighs 73 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

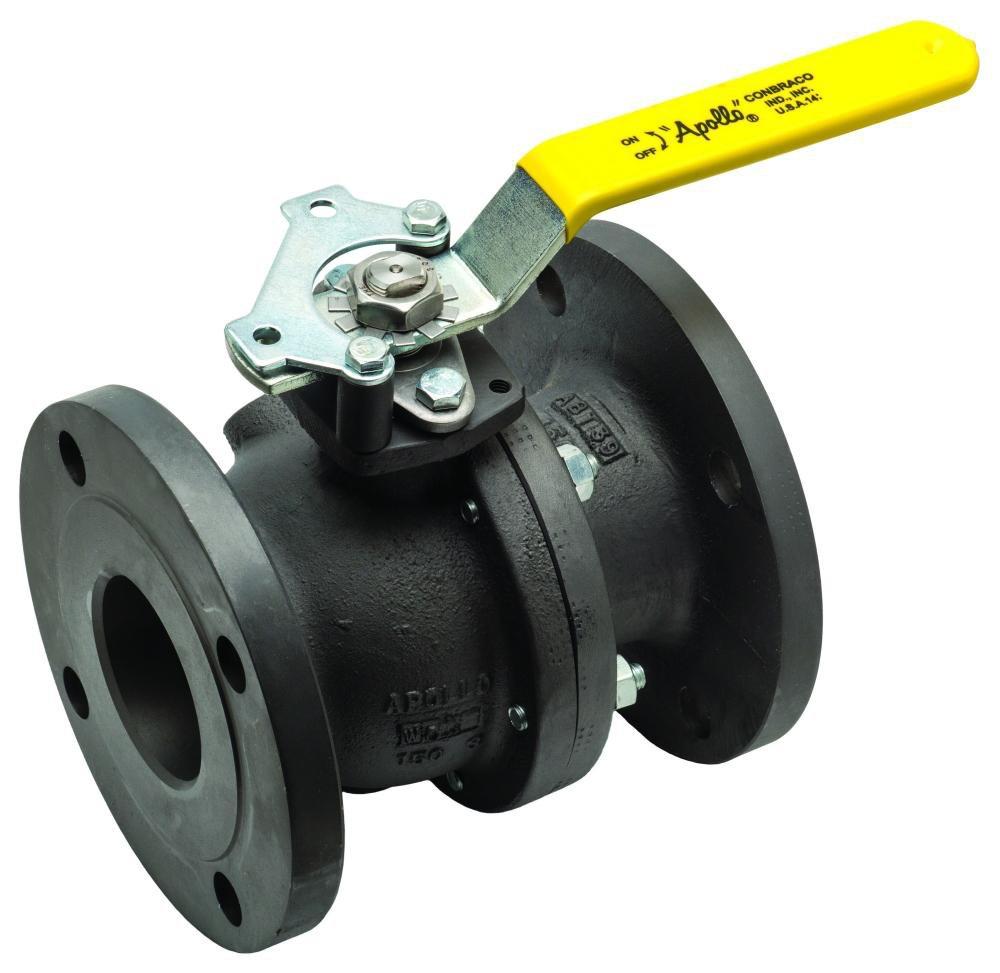

The Apollo Valves 88A10A01 is a reliable 88A-100 Series ball valve designed for robust industrial applications. Constructed from carbon steel, this valve features a four-inch size with a standard port design. It operates at a maximum pressure of 285 psi and is suitable for steam service up to 150 psi.

  • Made in USA
  • Vacuum service to twenty-nine inches of Hg
  • Blow-out proof stem and thermal expansion design

Product Highlights

This ball valve allows for two-way flow and includes a locking plate for added security. The inline flanged design simplifies installation in various piping systems.

Product Information

Standard Information

  • Brand: Apollo Valves
  • Part Number: 88A10A01
Technical Specifications
Series
88A-100
Weight
Seventy-three lbs
Port Size
Four ANSI Flange 150#
Body Style
Two piece
Control Type
Manually operated
Handle Style
Lever handle
Ball Material
Chrome plated steel
Body Material
Carbon steel
Flange Material
Carbon steel
O-Ring Material
PTFE
Media Pressure Rating
Steam - one hundred fifty psi
Maximum Operating Pressure
Two hundred eighty-five psi
