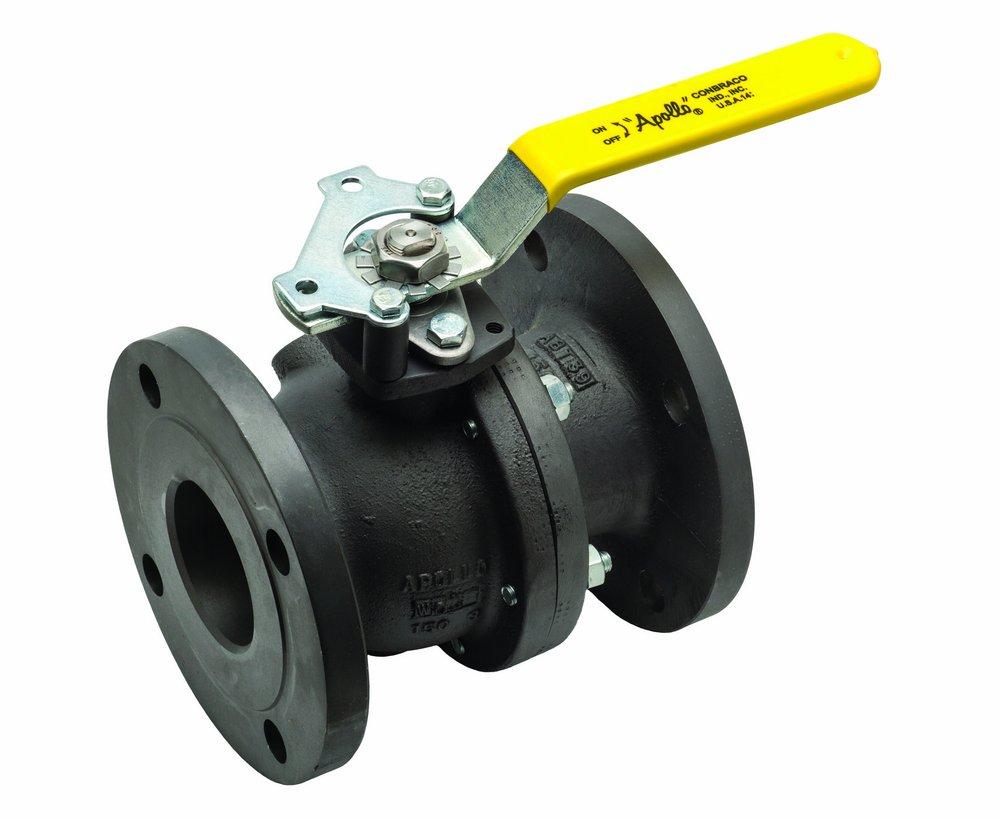

Apollo Valves 88A10001 88A-100 Series 3 in. Carbon Steel Standard Port Flanged 150# Ball Valve

Product Description

Apollo Valves 88A10001 is a 3-inch carbon steel standard port flanged ball valve. This valve is designed for 150 psi applications, ideal for industrial and commercial settings. It features a manually operated design with a lever handle for easy operation. The ball valve includes a four-point mounting pad for secure installation and a vacuum service rating of up to twenty-nine inches of mercury.

• Constructed from carbon steel for durability
• Supports a maximum operating pressure of 285 psi
• Two-way flow direction for versatile applications

Product Highlights

This ball valve is designed for reliable performance in high-pressure systems. It can handle steam pressure and includes features for thermal expansion control.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 88A10001

Technical Specifications

• Weight: 44.00 lbs
• Port Size: 3 ANSI Flange 150#
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Steel
• Body Material: Carbon Steel
• Mounting Type: Inline Flanged
• Maximum Operating Pressure: 285 psi
