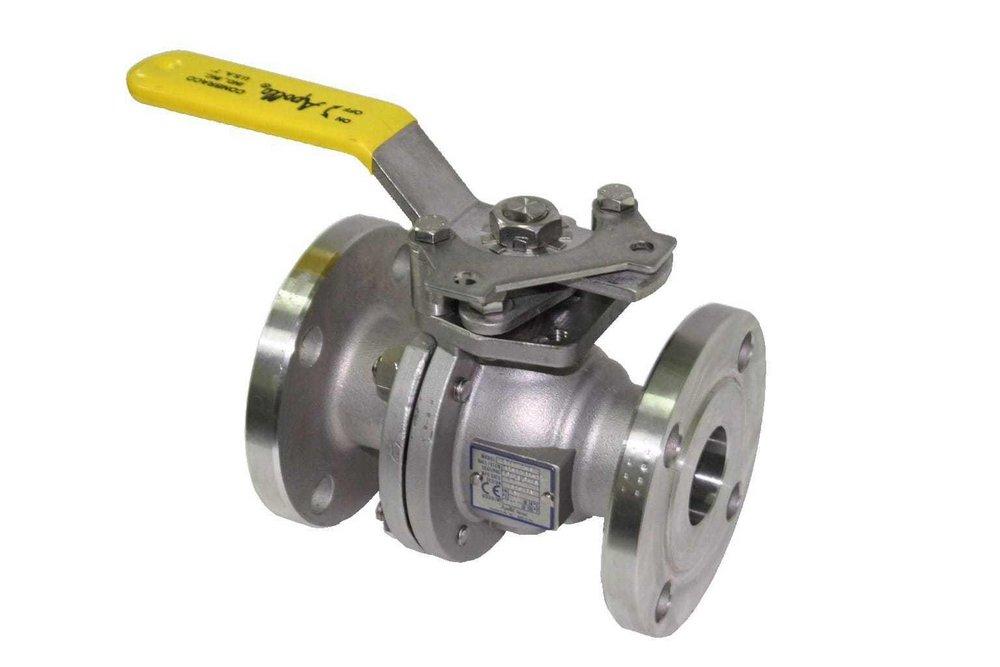

Apollo Valves 87A20824 87A-200 Series 2 In. CF8M Stainless Steel Full Port Flanged 150# Ball Valve

Product Description

The Apollo Valves 87A20824 is a 2-inch CF8M stainless steel full port flanged ball valve. Designed for maximum flow with minimal pressure drop, this valve is ideal for various industrial applications. It features a swing-out center section and a pressure-balanced solid ball, ensuring reliable operation in demanding environments.

• Cast bosses on the center-section and end caps for bleed and drain ports.
• Adjustable multi-piece PTFE V style packing.
• Anti-blowout one-piece bottom entry stem design.

Product Highlights

This valve provides secure sealing with compression controlled RPTFE gaskets and is suitable for vacuum services down to twenty-nine inches of mercury.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 87A20824

Technical Specifications

• Body Material: CF8M stainless steel
• Port Type: Full port
• Size: 2 inches
• Pressure Rating: 150#
• Stem Type: Anti-blowout design
• Packing Type: Multi-piece PTFE V style
• Gasket Type: Compression controlled RPTFE
• Vacuum Service: Down to twenty-nine inches of mercury
