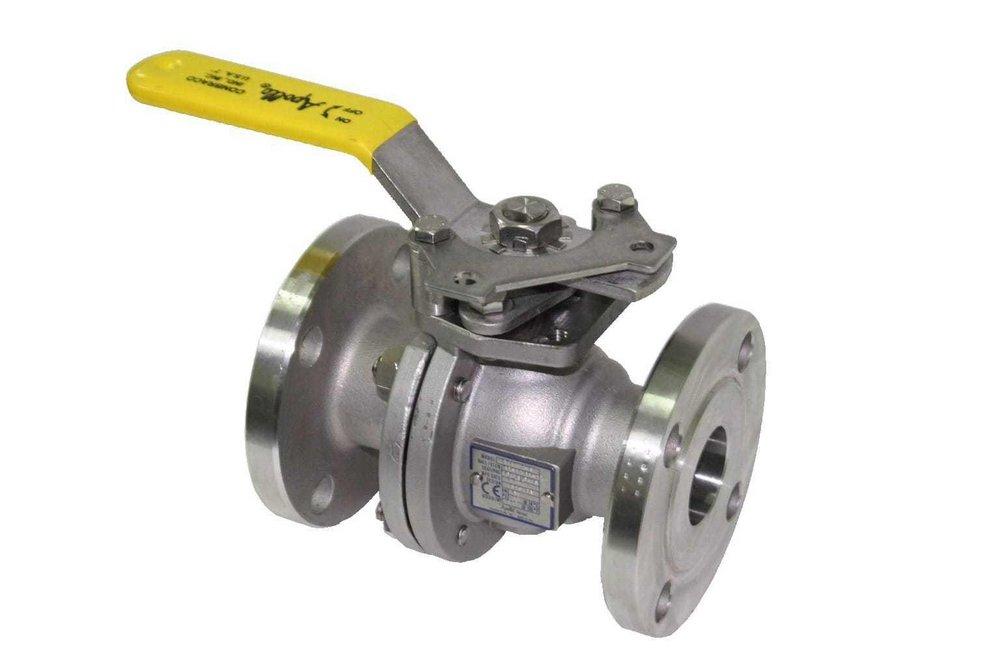

Apollo Valves 87A20024 87A-200 Series 3 in. CF8M Stainless Steel Full Port Flanged 150# Ball Valve

Product Description

The Apollo Valves 87A20024 87A-200 Series Ball Valve features a full port flanged design and is made from CF8M stainless steel. This valve spans 3 inches and operates under a 150# class, ensuring reliability and durability for various applications.

• CF8M Stainless steel construction
• Full port flanged design
• 3-inch valve size with 150# class

Product Highlights

Optimized for heavy-duty and industrial use, this valve comes equipped with stainless steel trim and hardware. The pressure-balanced solid ball and swing-out center section enhance functionality and maintenance.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 87A20024

Technical Specifications

• Valve Size: 3 inches
• Material: CF8M Stainless Steel
• Pressure Class: 150#
• Design: Full port flanged
• Trim and Hardware: Stainless steel
• Center Section: Swing-out with cast bosses for bleed and drain ports
• Stem: Anti-blowout one-piece bottom entry
• Gaskets: Compression controlled RPTFE
• Special Features: Two-position locking, Adjustable multi-piece PTFE V style packing, Vacuum services to 29 inches of Hg
