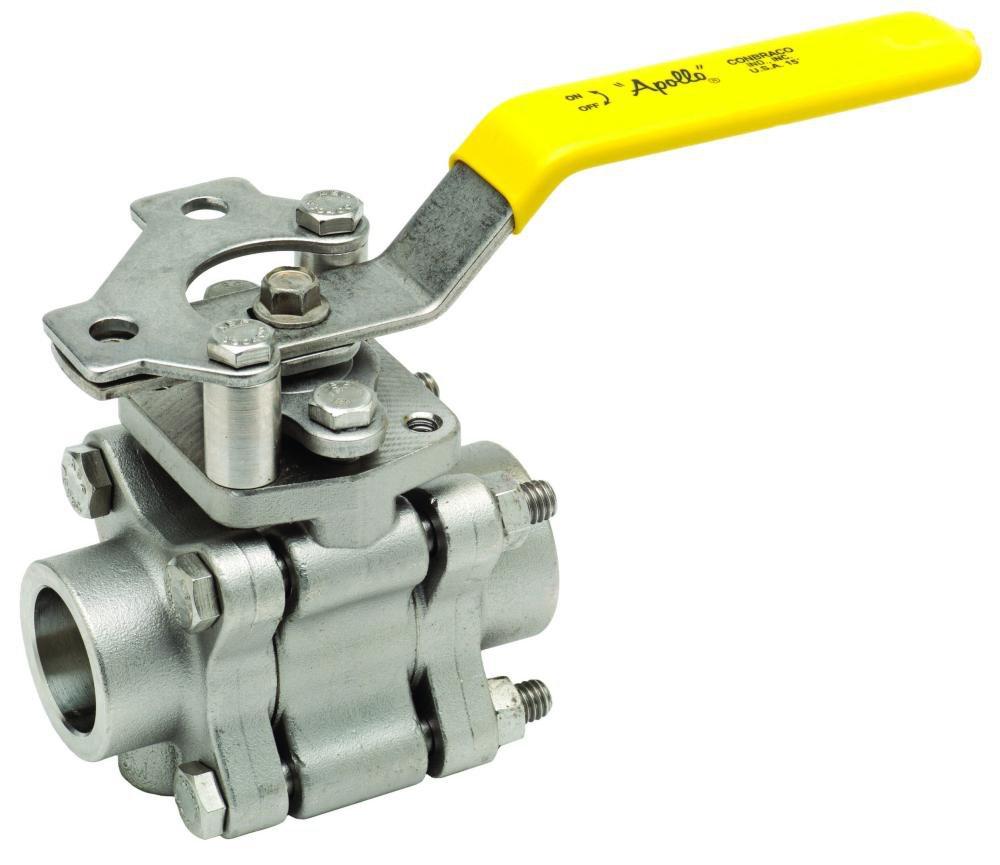

Apollo 86A20501 86A-200 Series 1 in. CF8M Stainless Steel Full Port Socket Weld 1500# Ball Valve

Product Description

The Apollo 86A20501 is a ball valve designed for high pressure and temperature applications. This valve features a full port design and is constructed from 316 stainless steel, making it suitable for various industrial uses. Its socket weld connection ensures a secure fit, enhancing reliability in piping systems.

• Full port design for maximum flow
• Stainless steel trim with lead-free construction
• Meets MSS SP-110 and NACE standards

Product Highlights

This valve is ideal for applications requiring steam and cold water service. The pressure rating of 1500 psi allows for usage across multiple systems including water and steam.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 86A20501

Technical Specifications

• Weight: 5.70 lbs
• Port Size: 1 in Socket Weld
• Body Style: 3 Piece
• Ball Material: 316 Stainless Steel
• Body Material: CF8M Stainless Steel
• Maximum Operating Pressure: 1500 psi
• Media Pressure Rating: Steam - 150 psi, Cold Water - 1500 psi
• Handle Style: Lever Handle
