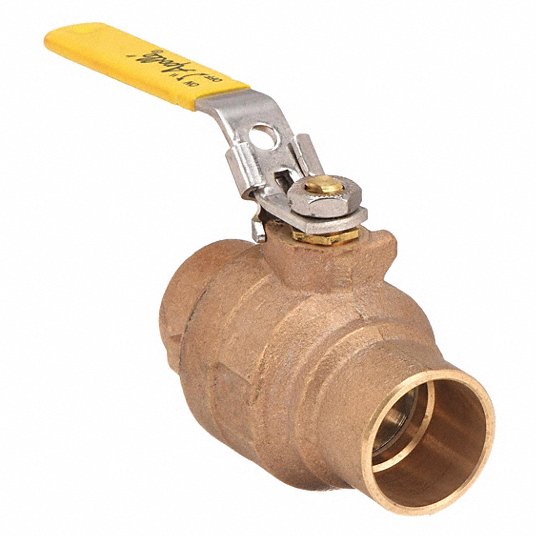

Apollo 77C20627A Ball Valve 77C-200A Bronze 1-1/4 Inch Solder 2-Piece Full Port Locking Handle

Product Description

The Apollo 77C20627A is a ball valve designed for plumbing applications. It features a bronze construction and is equipped with a solder connection for reliable performance. This two-piece valve provides a full port design, allowing for better flow capacity and minimal pressure drop.

• 1-1/4 inch size for various plumbing needs
• Locking handle for secure operation
• Full port for optimal flow performance

Product Highlights

This valve is suitable for both residential and commercial plumbing systems. It can handle high pressure and temperature applications up to four hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Apollo
• Manufactured Type: Bronze

Technical Specifications

• Size: 1-1/4 inch
• End Connection: Solder
• Product Type: 2-Piece
• Port Type: Full Port
• Options: Locking Handle
• Seal Material: RPTFE
• Maximum Pressure: 600 PSIG CWP / 150 PSIG SWP
• Maximum Temperature: 450 degrees F
• End to End Distance: 4.21 inches
• Shipping Weight: 27.276 pounds
