Apollo Valves 77C10727A Ball Valve 1-1/2 Inch

Product Description

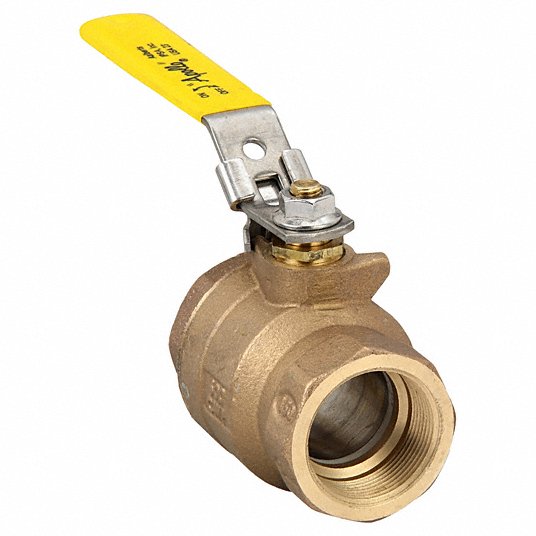

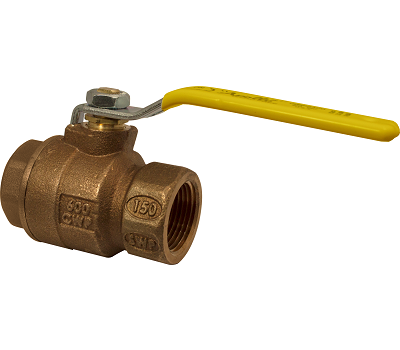

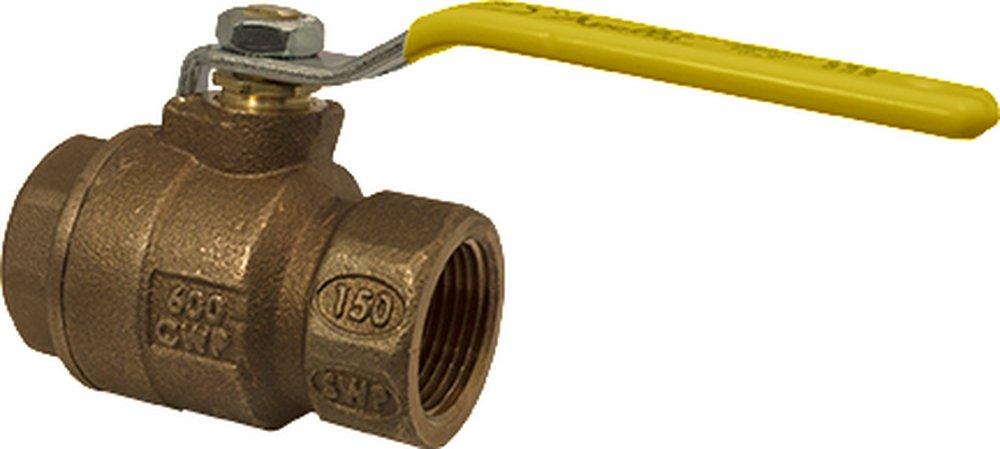

The APOLLO VALVES 77C10727A is a bronze ball valve with a dezincification resistant bronze body and premium RPTFE seats and stem packing. The solid ball design delivers full-port flow performance. It is cast and machined in Apollo's South Carolina manufacturing plants using ASTM materials. Not for use with potable water systems in USA.

• Dezincification resistant bronze body
• Premium RPTFE seats and stem packing
• Solid ball design

Product Highlights

This bronze ball valve features a full port, a locking lever handle, and a blowout-proof stem. It is suitable for high-temperature applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 77C10727A
• Country of Origin: United States

Technical Specifications

• MPN: 77C10727A
• Make: APOLLO VALVES BY CONBRACO INC
• SellPackageQuantity: 1
• SellUom: Each
• ManufacturerSKU: 77C10727A
• Brand: APOLLO VALVES
• ManufacturerName: APOLLO VALVES BY CONBRACO INC
• Pipe Size: 1 1/2"
• Tube Size: 1 1/2"
• Connection Type: FNPT x FNPT
• Port: Full
• Max. Pressure: 600 psi CWP
• Max. Steam Pressure: 150 psi WSP
• Temp. Range: -20 Degrees to 450 Degrees F
• Ball Material: Chrome Plated Brass
• Seat Material: RPTFE
• Stem Type: Blowout Proof
• Handle Type: Locking Lever
• Handle Material: Zinc Plated Steel
• Body Seal Material: RPTFE
• Valve Structure: 2-Piece
• General Connection Type: Female NPT
• Ball Valve Product Group: Manual
• Ball Valve Basic Body Material: Bronze
• Country of Origin (subject to change): United States
• ANSI: ANSI Z1157
• ASTM: ASTM B-584 C85710
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT
• Height: 2.9 in
• IAPMO Listed: Yes
• ISO: ISO 9001-2008
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• Length: 4.11 in
• MSS: MSS SP-110
• Material: Cast Bronze
• Material Type: B584, C84400
• Maximum Temperature: 450
• Minimum Temperature: -20
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Recommended Valve Application: HVAC, Vacuum, Steam
• Temperature Range: -20 to 450 Deg F
• Valve Body Material: Bronze
• Valve Disc Material: Brass
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1-1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• cUPC Certified: Yes
• Actuator Type: Lever Operated
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 4.11 in
• Media: Water
• Nominal Size: 1-1/2 In
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 77C-A
• Softgoods Material: RPTFE
• Temperature Rating: 450 deg F
• Top to Inlet Center: 2.9 in
• Trim Material: Brass Stem and RPTFE Seat
• Valve Construction: Two-Piece
• For Media: Steam
• Valve Body Style: Straight
• Ball Port Style: Full
• Connection Type - Side 1: NPT
• Connection Gender - Side 1: Female
• Connection Size - Side 1: 1-1/2 in
• Connection Type - Side 2: NPT
• Connection Gender - Side 2: Female
• Connection Size - Side 2: 1-1/2 in
• Max. Pressure (CWP): 600 psi
• Max. Pressure (Steam): 150 psi
• Max. Pressure (Combustible Gas): Not Rated
• Media Temp. Range: -20 °F to 450 °F
• Vacuum Service Rating: 29 in Hg
• 3-A Compliance: Not Rated
• Standards: ASTM B584-C84400; Build America Buy America Act (BABA); Buy American Act (BAA);
• CRN: Yes
• Handle: Locking Lever
• Stem Material: PTFE
• Seal Material: PTFE
• Vented Ball Valve: Vented
• Cleaned and Bagged: Not Cleaned and Bagged
• Valve Body Color: Bronze
• Overall Length: 4.11 in
• Handle Length: 5.37 in
• Valve Series: 77C
• Manufacturer Warranty: 5 yr
• UNSPSC: 40141607
