Product Description

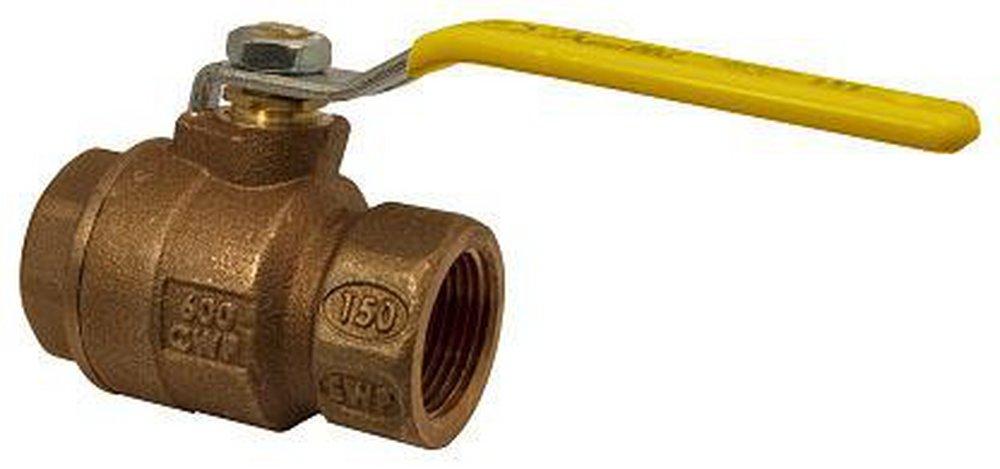

The Apollo Valves 77C10701A is a bronze full-port ball valve designed for commercial applications. This valve has a dezincification-resistant body, ensuring durability. It features premium RPTFE seats and stem packing for consistent performance and a solid ball design for true full-port flow.
- Dezincification-resistant bronze body
- RPTFE seats and stem packing
- Full-port solid ball design
Product Highlights
This Apollo 77C-A series ball valve features a full-port design with a solid ball, adjustable stem packing, and is 100% factory tested. Suitable for commercial use, it withstands 600 psi CWP and 150 psi saturated steam. Made in the USA.
Product Information
Standard Information
-
Brand: Apollo Valves
-
Part Number: 77C10701A
-
Material: Bronze
-
Connection Size: 1-1/2 inches
Technical Specifications
-
Ball Material: Chrome-Plated Brass
-
Connection Type: NPT
-
Dimension: 4.11 inches L
-
Flow Co-Efficient: 177 Cv
-
Pressure Rating: 600 psi CWP, 150 psi WSP
-
Temperature Rating: 450 deg F
-
Seal Material: RPTFE
-
Seat Material: RPTFE
-
Stem Material: Brass
-
Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
-
Standards/Certifications: MSS SP-11, CRN OC10908.5C, IAPMO/ANSI Z1157-2014e1 certified, cUPC listed
