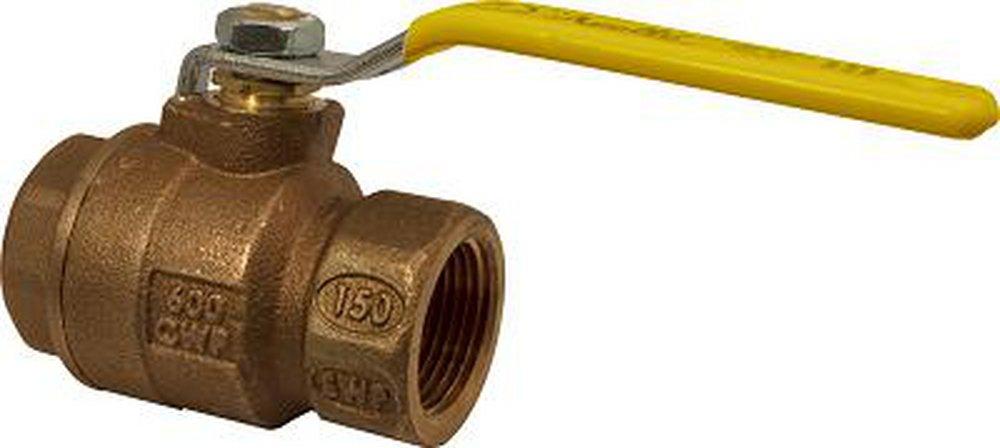

Apollo 77C-105-01A Bronze Full Port Ball Valve 1 in. NPT 600 Ball Valve

Product Description

The Apollo 77C-105-01A Bronze Full Port NPT 600 Ball Valve offers reliable performance for industrial and scientific applications. This valve features a durable bronze body and full port design, ensuring efficient fluid control.

• Blowout-proof stem design
• Adjustable stem packing
• 100% factory tested

Product Highlights

This Apollo valve is suitable for a variety of applications, particularly those requiring highly durable and reliable fluid control solutions.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 77C-105-01A
• Type: 2-Piece, Full-Port
• Application: Suitable for industrial and scientific fluid control

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1 in
• Connection Type: NPT
• Dimension: 3.24 in L
• Flow Co-Efficient: 68 Cv
• Material Specifications: ASTM B16, ASTM B283, C37700, ASTM B584
• Material: Bronze
• Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
• Packaging Material: RPTFE
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Seal Material: RPTFE
• Seat Material: RPTFE
• Series: 77C
• Stem Material: Brass
• Temperature Rating: 450 deg F
• Standards/Certifications: MSS SP-11, CRN OC10908.5C, IAPMO/ANSI Z1157-2014e1 certified, cUPC listed
