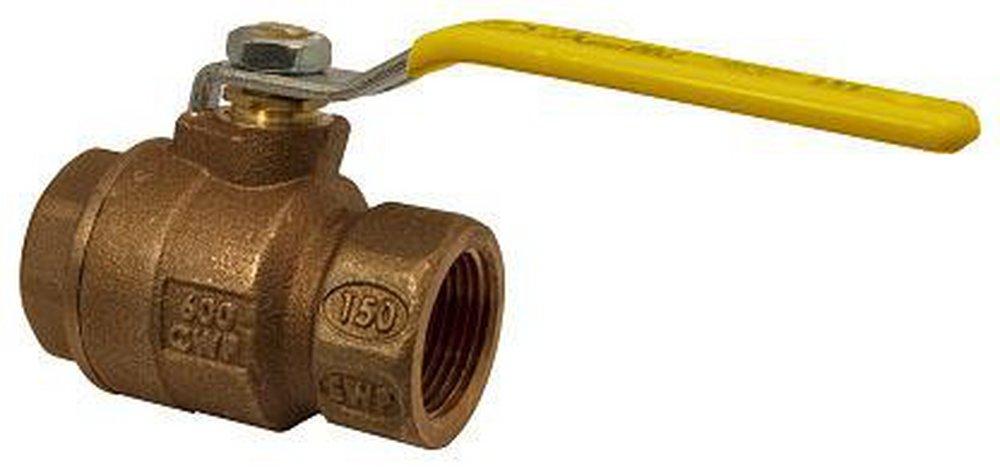

Apollo Valves 77C10301A 1/2 in. Bronze Full Port NPT 600 Ball Valve

Product Description

The Apollo Valves 77C10301A Bronze Ball Valve is designed for robust flow control. This valve features a full-port design and is crafted from dezincification-resistant bronze.

• Full-port solid ball design
• Blowout-proof stem design
• Adjustable stem packing

Product Highlights

This Apollo Ball Valve offers efficient flow control and durability, perfect for commercial applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 77C10301A
• Size: 1/2 in

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1/2 in
• Connection Type: NPT
• Dimension: 2.29 in L
• Flow Co-Efficient: 16 Cv
• Material: Bronze
• Model: 77C-100
• Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
• Packaging Material: RPTFE
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Seal Material: RPTFE
• Seat Material: RPTFE
• Series: 77C
• Stem Material: Brass
• Temperature Rating: 450 deg F
• Type: 2-Piece, Full-Port
• Material Specifications: ASTM B16, ASTM B283, C37700, ASTM B584
• Standards/Certifications: MSS SP-11, CRN OC10908.5C, IAPMO/ANSI Z1157-2014e1 certified, cUPC listed
