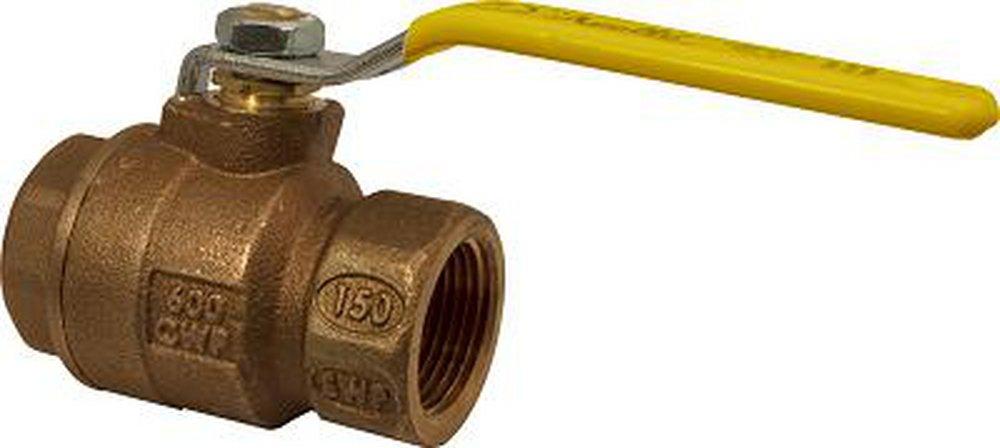

Apollo Valves 77C-101-01A Bronze Full Port Ball Valve 1/4 Inch NPT 600#

Product Description

The Apollo Valves 77C-101-01A is a 1/4 inch bronze full port NPT 600# ball valve. This valve is part of the 77C-A series, featuring a solid ball design to ensure full port performance. Designed with a blowout-proof stem and adjustable stem packing, it ensures reliable operation and long service life.

• 1/4 inch bronze full port NPT 600# ball valve
• Blowout-proof stem design
• Adjustable stem packing

Product Highlights

The 77C-101-01A ball valve from Apollo Valves offers a solid ball design for full-port flow. This valve is factory tested and made in the USA with high-quality materials, including chrome-plated brass, RPTFE, and ASTM-certified components.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 77C-101-01A
• Product Name: Bronze Full Port Ball Valve
• Size: 1/4 inch

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1/4 inch
• Connection Type: NPT
• Dimension: 1.8 inches L
• Flow Co-Efficient: 5 Cv
• Item Name: Ball Valve
• Material Specifications: ASTM B16, ASTM B283, C37700, ASTM B584
• Material: Bronze
• Model: 77C-100
• Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
• Packaging Material: RPTFE
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Seal Material: RPTFE
• Seat Material: RPTFE
• Series: 77C
• Stem Material: Brass
• Temperature Rating: 450 deg F
• Type: 2-Piece, Full-Port
• Standards/Certifications: MSS SP-11, CRN OC10908.5C, IAPMO/ANSI Z1157-2014e1 certified, cUPC listed
