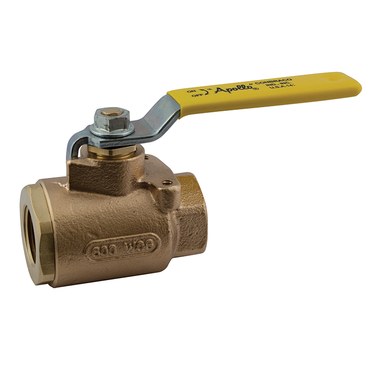

Apollo 7714864 Ball Valve 77-100 Bronze 2 Inch FNPT 2-Piece Full Port 250# Steam Trim

Product Description

The Apollo 7714864 is a ball valve designed for various plumbing applications. This valve features a two-piece construction and is built from durable bronze material, ensuring longevity under pressure. It offers a two-inch female National Pipe Thread (FNPT) connection, which allows for easy installation in plumbing systems.

• 2-piece design with full port functionality.
• Rated for 600 PSIG for cold water service and 150 PSIG for steam.
• Temperature tolerance up to 500 degrees Fahrenheit.

Product Highlights

This valve is suitable for steam and cold water applications due to its robust build. The full port design provides efficient flow, minimizing pressure drop.

Product Information

Standard Information

• Brand: Apollo
• Material: Bronze

Technical Specifications

• Size: 2 inches
• End Connection: FNPT
• Port Type: Full Port
• Options: 250# Steam Trim
• Seal Material: PTFE
• Pressure Rating: 600 PSIG Cold Water, 150 PSIG Steam
• Temperature Rating: 500 degrees Fahrenheit
• End to End Distance: 5.37 inches
• Shipping Weight: 6 lbs
