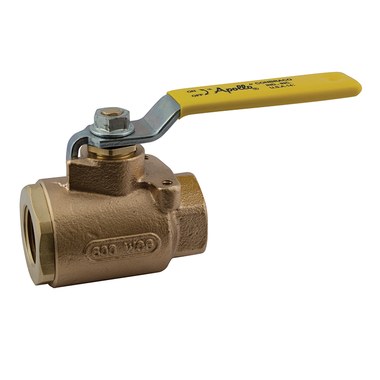

Apollo 7714764 Ball Valve 77-100 Bronze 1-1/2 Inch FNPT 2-Piece Full Port 250# Steam Trim

Product Description

The Apollo 7714764 is a bronze ball valve designed for applications requiring reliable flow control. This 1-1/2 inch valve features FNPT ends and is categorized as a two-piece construction. The full port design allows for maximum flow, making it suitable for steam applications.

• Size: 1-1/2 inches
• Material: Bronze
• Connection type: FNPT

Product Highlights

This valve is equipped with a PTFE seal material and is rated for pressures up to 600 PSIG CWP and 150 PSIG SWP. It also operates at temperatures up to 500 degrees Fahrenheit, making it a versatile choice for various plumbing and steam applications.

Product Information

Standard Information

• Brand: Apollo
• Product Type: 2-Piece

Technical Specifications

• Size: 1-1/2 inches
• Material: Bronze
• End Connection: FNPT
• Pressure Rating: 600 PSIG CWP / 150 PSIG SWP
• Temperature Rating: 500 DEG F
• Port Type: Full Port
• Seal Material: PTFE
• End to End Distance: 4.75 inches
• Shipping Weight: 5 pounds
