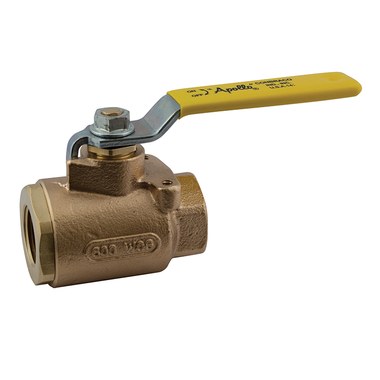

Apollo 7714664 Ball Valve 77-100 Bronze 1-1/4 Inch FNPT 2-Piece Full Port 250# Steam Trim

Product Description

The Apollo 7714664 is a bronze ball valve with a size of one and one-quarter inches and FNPT end connections. This two-piece valve is designed for full port flow and can withstand high pressures, making it suitable for various plumbing applications, including steam systems.

• Material: Bronze
• Full port design for increased flow
• Rated for steam pressure up to 250#

Product Highlights

This valve is a reliable option for both residential and commercial plumbing operations. Its robust construction ensures longevity, and the PTFE seal material offers excellent resistance to heat and pressure.

Product Information

Standard Information

• Brand: Apollo
• Material: Bronze

Technical Specifications

• Size: 1-1/4 inches
• End Connection: FNPT
• Product Type: 2-Piece
• Port Type: Full Port
• Options: 250# Steam Trim
• Seal Material: PTFE
• Pressure: 600 PSIG CWP / 150 PSIG SWP
• Temperature: 500 degrees Fahrenheit
• End to End Distance: 4.25 inches
• Shipping Weight: 8.000 lbs
