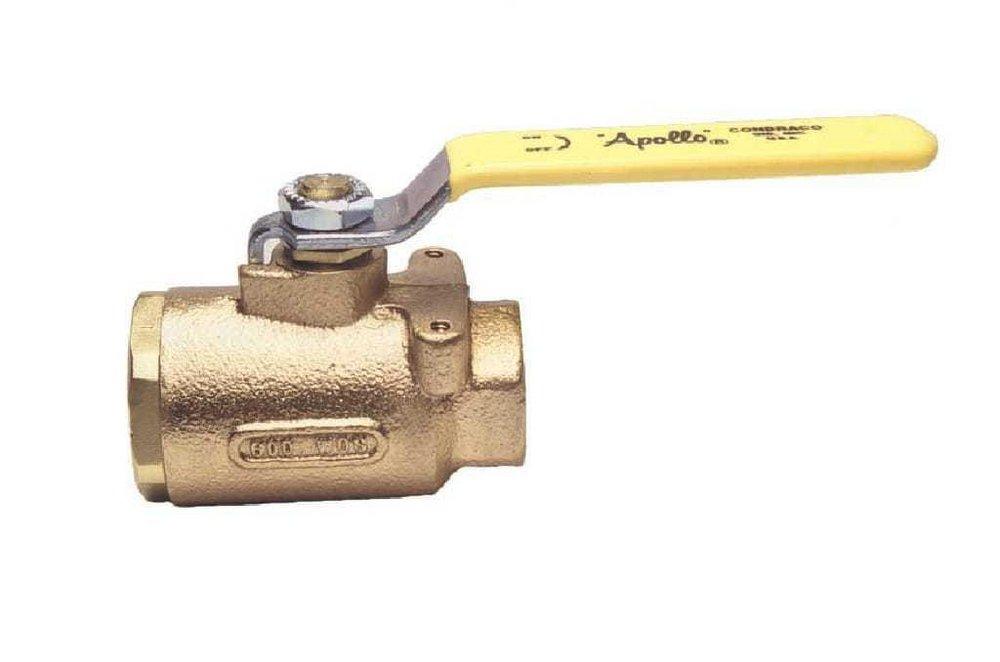

Apollo 7714501 77-100 Series 1 in. Bronze Full Port FNPT 600# Ball Valve

Product Description

Apollo 7714501 is a bronze full port ball valve designed for durability and effective fluid control. This valve has a nominal size of one inch and features a female national pipe thread for easy connection. It is rated for a pressure of 600 PSI CWP and 150 PSI SWP and can handle temperatures up to five hundred degrees Fahrenheit. The valve has a blow-out proof stem, which enhances safety and efficiency when in use.

• One inch size with full port design
• Constructed from bronze with stainless steel ball and stem
• Pressure ratings of 600 PSI CWP and 150 PSI SWP

Product Highlights

This valve is ideal for residential and commercial plumbing applications, providing reliable operation in various settings. Its adjustable packing gland allows for easy maintenance and enhanced longevity.

Product Information

Standard Information

• Brand: Apollo
• MPN: 7714501

Technical Specifications

• Material: Bronze
• Port Type: Full Port
• Seal Material: RPTFE
• End Connection: FNPT
• End to End Distance: 3.52 inches
• Shipping Weight: 3.320 lbs
• Temperature Rating: 500 degrees Fahrenheit
• Pressure Rating: 600 PSI CWP / 150 PSI SWP
