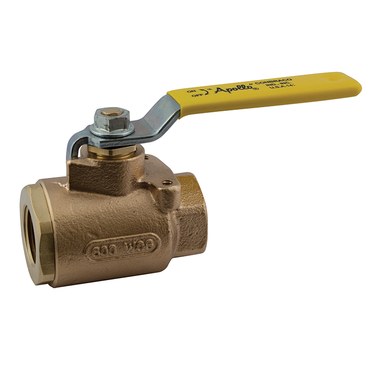

Apollo 7714264 Ball Valve 77-100 Bronze 3/8 Inch FNPT 2-Piece Full Port 250# Steam Trim

Product Description

The Apollo 7714264 is a ball valve designed for plumbing applications. This valve features a three-eighth inch FNPT connection and is made from durable bronze. Its two-piece construction supports full port capabilities, making it effective for controlling liquids and gases. The valve operates under pressure ratings of six hundred PSIG for cold water service and one hundred fifty PSIG for steam service, and it withstands temperatures up to five hundred degrees Fahrenheit.

• Size: 3/8 Inch FNPT
• Material: Bronze
• Type: 2-Piece Full Port

Product Highlights

This ball valve is suitable for steam applications and includes a PTFE seal to ensure durability and performance.

Product Information

Standard Information

• Brand: Apollo
• Material: Bronze

Technical Specifications

• Size: 3/8 Inch
• End Connection: FNPT
• Product Type: 2-Piece
• Port Type: Full Port
• Options: 250# Steam Trim
• Seal Material: PTFE
• Pressure Ratings: 600 PSIG CWP / 150 PSIG SWP
• Temperature Rating: 500 Degrees Fahrenheit
• End to End Distance: 2.18 Inches
• Shipping Weight: 3.000 Pounds
